Service Hints & Tips |
Document ID: JBAR-3RBP7S |

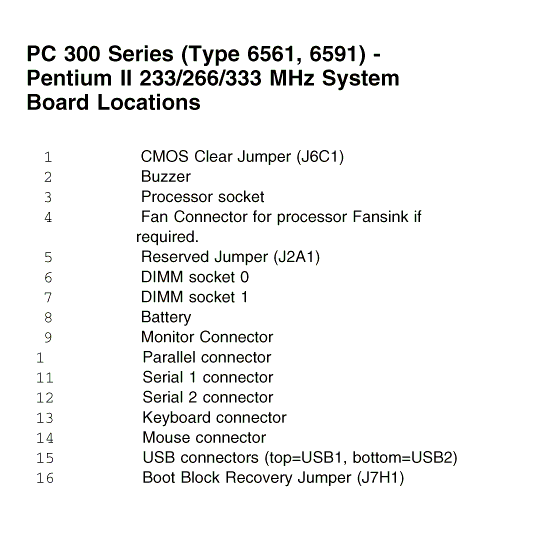

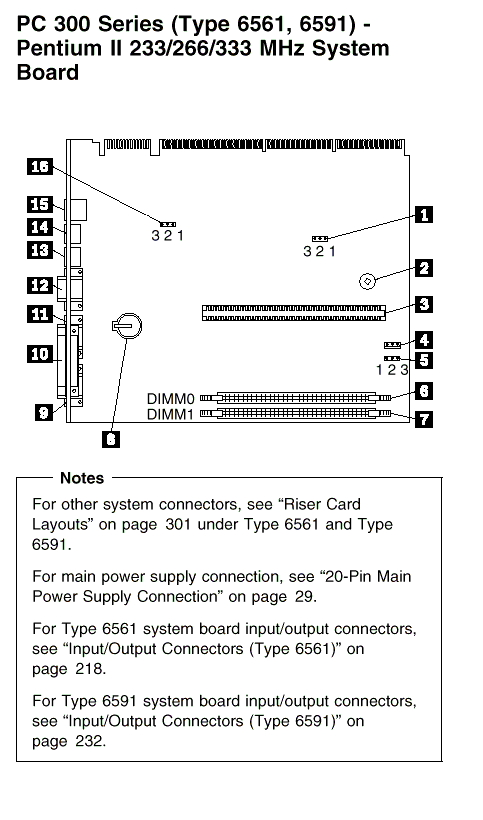

IBM PC300GL (Type 6561, 6591) - System Board Locations
Applicable to: World-Wide
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
02-02-98 | |
|
Last Updated |
28-04-98 | |
|
Revision Date |
21-04-99 | |
|
Brand |
IBM PC | |
|
Product Family |
PC 300GL | |
|
Machine Type |
6561, 6591 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
