TP 765D/L - 2040 Keyboard and Information Panel

46.107 bytes

Service Hints & Tips

Document ID: LWIK-3PMPVF

TP 765D/L - 2040 Keyboard and Information Panel

Applicable to: World-Wide

2040 Keyboard and Information Panel
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
Keyboard Card (1170)
Palm Rest (2010)
Palm Rest Rear Cover (2020)
Keyboard Card (2030)

Note: When pulling the lever off the foot 1 , separate the lower part of the lever from the foot by inserting a pointed device through the hole in the foot.

Step

Size (quantity)

Memo (torque)

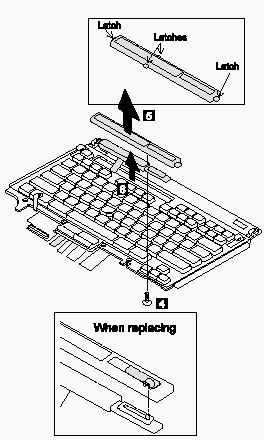

4.

M2.5 x 4 mm (1)

(3 kgcm)

Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

10-12-97

Last Updated

19-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Step	Size (quantity)	Memo (torque)
4.	M2.5 x 4 mm (1)	(3 kgcm)
