Service Hints & Tips |
Document ID: GKEY-3JSC58 |
TP 765 - 1020 Diskette Drive or CD-ROM Drive
Applicable to: World-Wide
1020 Diskette Drive or CD-ROM Drive

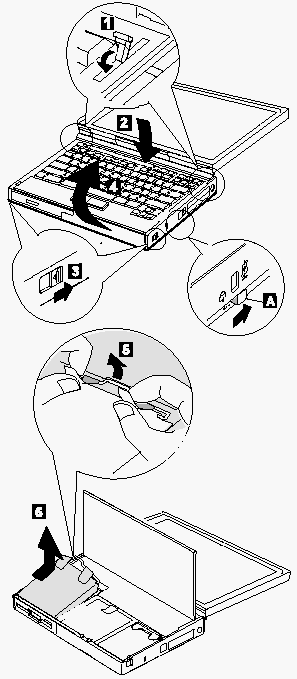

Diskette Drive (Model 765L)
Note: If the security latch A is at the left position,
push and slide it to the right position (unlock).

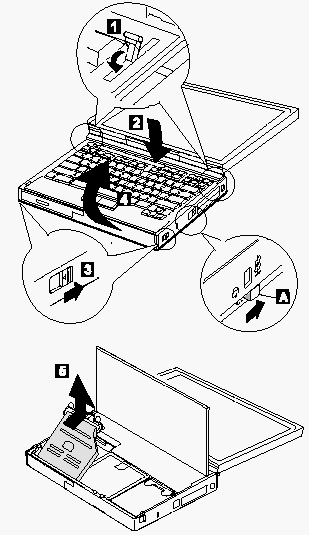

CD-ROM Drive (Model 765D)
|
Attention | |
|
Note: |
Remove the CD-ROM drive exactly as shown in the figure. |
|
Do not apply any extra force to the CD-ROM drive when |
Note: If the security latch A is at the left position
push and slide it to the right position (unlock).
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
08-07-97 | |
|
Last Updated |
01-04-98 | |
|
Revision Date |
12-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
