IBM PC330/PC350 - (Type 65x5) - Pentium 60 MHz system board
Applicable to: World-Wide
PC 330/350 Series (Type 65X5) - Pentium 60 MHz System Board:

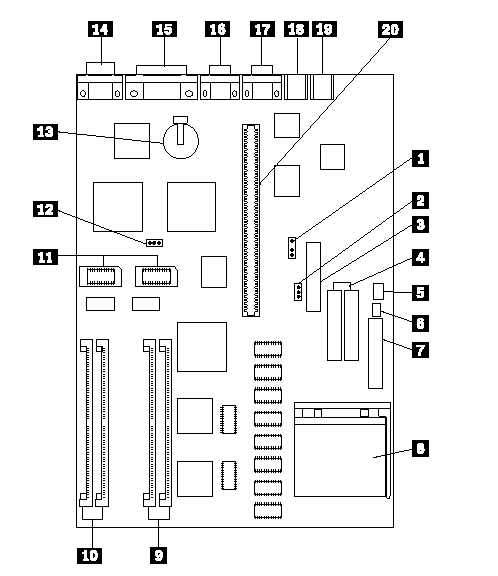

PC 330/350 Series (Type 65X5) - Pentium 60 MHz System Board Locations:
|
1 |
Modem Ring Detect jumper |
|
2 - WP |
Diskette drive write protect jumper |
|
3 |
Diskette drive connector |
|
4 |
Hard disk drive connectors |
|
5 - J38 |
On/Off Switch Power Supply Connector |
|
6 - J37 |
On/Off Switch Connector |
|
7 |
Power supply connectors |
|
8 |
Processor connector |
|
9 |
Memory connectors (Bank 1) |
|
10 |
Memory connectors (Bank 2) |
|
11 |
Video memory modules |
|
12 - PWD |
Power-on password jumper |
|
13 |
Battery |
|
14 |
Display connector |
|
15 |
Parallel connector |
|
16 |
Serial connector |
|
17 |
Serial connector |
|
18 |
Keyboard connector |
|
19 |
Mouse connector |
|
20 |
Riser connector |
PC 330/350 Series (Type 65X5) - Pentium 60 MHz Jumper Settings:
The following table contains the jumper setting information. (D) indicates the default setting.
|
Jumper |
Setting |
Description |
|
MRD |
2-3 (D) |
Modem answer on ring. |
|
WP |
2-3 (D) 1-2 |
Enable writing to a diskette |
|
PWD |
1-2 (D) |
Password enabled. Password reset. |
|
