Parts Information |
Document ID: DETR-3YRL9B |

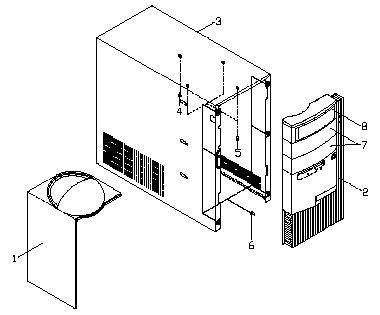

Aptiva - 2138 System unit (Exterior) service parts
Applicable to: World-Wide
|
Asm-Index |
FRU Number |
Description |
|
1-1 |
02K2324 |
Top/Side Panel |
|
1-2 |
02K2325 |
Front Panel |
|
1-3 |
02K2326 |
Top Cover |
|
1-4 |
02K2327 |
Screw for Top/Side Panel |
|
1-5 |
02K2329 |
Screw for Top/Side Panel |
|
1-6 |
02K2329 |
Screw for Front Panel |
|
1-7 |
02K2330 |
Drive Bay Panel - 2nd & 3rd 5.25-in. Drive |
|
1-8 |
02K2331 |
Drive Bay Panel - 1st 5.25-in. Drive |
|
