Service Hints & Tips |
Document ID: DDSE-3U6MMB |
PC Server 520 - Expansion bay locations
Applicable to: World-Wide

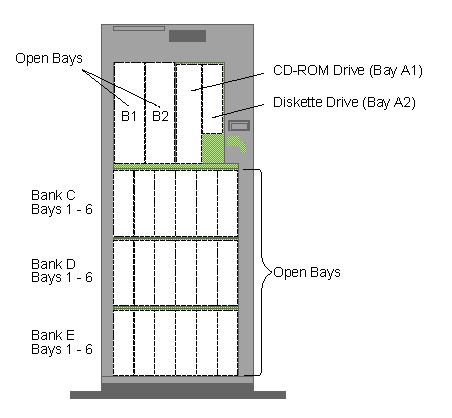

Expansion Bays
Note:
For additional internal drive information, see 'Internal Drives (Type 8641)´.
Open Bays:
Your server's special design gives you the flexibility to use combinations of 3.5-inch or 5.25-inch hard disk, tape, and rewritable optical disk drives. Your server can use up to 18 hot-swappable 3.5-inch hard disk drives. For additional internal drive information, see 'Internal Drives (Type 8641)´ .
CD-ROM Drive:
All models come with a SCSI 4X CD-ROM drive.
Diskette Drive:
The 3.5-inch, 1.44MB diskette drive uses 1MB or 2MB diskettes.
Hard Disk Drive:
The number and capacities of the hard disk drives vary, depending on your model.
|
