Service Hints & Tips |
Document ID: LWIK-3XZKHK |

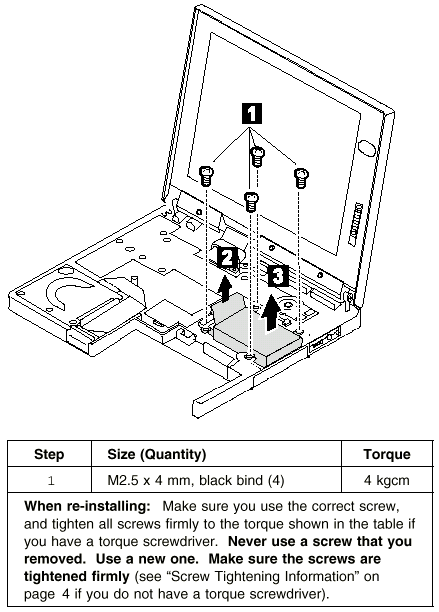

TP 560Z - 1090 PC Card Slot Assembly
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1030)
Keyboard Bezel (1050)
Note: Before removing and replacing the PC Card slot assembly, make sure that the PC Cards are removed and the eject levers are not sticking out.
|
