Parts Information |
Document ID: LWIK-3NQLKC |
TP 760XD - FRU parts listing
Applicable to: World-Wide

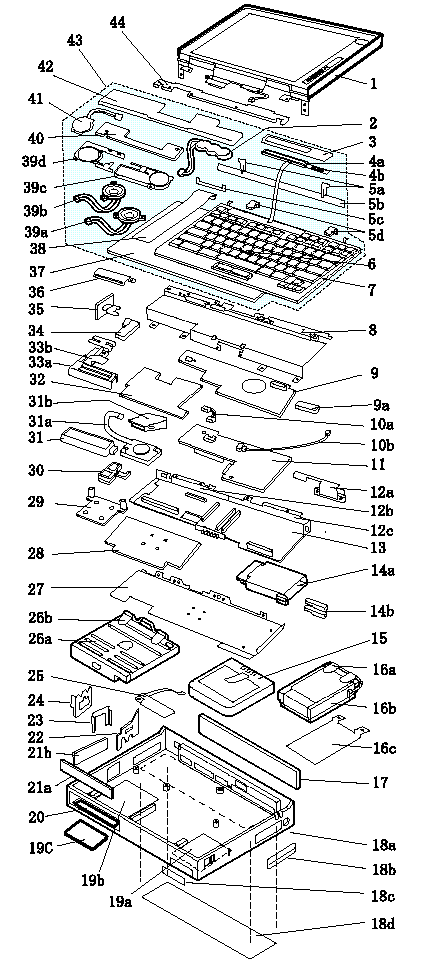

FRU Parts Model 760XD
|
Index |
Part (760XD) |
FRU |
|
1 |
LCD Assembly (12.1, XGA, TFT) |
46H5735 |
|
2 |
Standby Battery |
29H9497 |
|
3 |
LCD Indicator Assembly Cover |
46H5736 |
|
4a |
LCD Indicator Assembly |
46H5889 |
|
4b |
Volume Knob |
69H8404 |
|
5a |
See Keyboard Misc. parts | |
|
5b |
Keyboard Foot |
39H7038 |
|
5c |
Keyboard FPC Bracket |
39H7035 |
|
5d |
See Keyboard Misc. parts | |
|
6 |
TrackPoint III Cap |
|
|
7 |
Keyboard (See Keyboard Section) | |
|
8 |
Upper Shield Case |
29H9213 |
|
9 |
Video Card |
46H5770 |
|
9a |
Acoustic Spacer |
46H5495 |
|
10a |
Volume Connection Cable |
82H8965 |
|
10b |
Mic Connection Cable |
29H9210 |
|
11 |
DSP Card |
29H9205 |
|
12a |
FDD Connector Cable |
29H9203 |
|
12b |
Rear Shield Case (left) |
46H5759 |
|
12c |
Rear Shield Case (right) |
46H5758 |
|
13 |
System Board (XGA) |
46H5772 |
|
14a |
PC Card Slot |
46H5751 |
|
14b |
Eject Button |
46H6028 |
|
15 |
Battery Pack (Li-ion) |
29H9232 |
|
16a |
HDD Removable Strap |
29H9236 |
|
16b |
Hard Disk Drive (3 GB) |
45H8791 |
|
Hard Disk Drive (5.1 GB) |
00K7907 | |
|
16c |
EMI Sheet |
46H5497 |
|
17 |
Rear Connector Door |
46H5764 |
|
18a |
Base Cover |
46H5754 46H5755 |
|
18b |
PC Card Door |
29H9238 |
|
18c |
Name Label |
66G9228 |
|
18d |
Thermal Rubber Sheet |
82H8966 |
|
19a |
Shield Plate, right |
46H5760 |
|
19b |
Shield Plate, left |
46H5761 |
|
19c |
DIMM Adapter Card (8 MB) |
46H5768 |
|
20 |
Lower Spacer |
29H9194 |
|
21a |
FDD Blank Bezel |
29H9289 |
|
|
FDD Bezel |
29H9197 |
|
21b |
Option Cover |
29H9193 |
|
22 |
AV Cover |
29H9190 |
|
23 |
Modem Cover Lock |
39H7027 |
|
24 |
Modem Cover |
39H7029 |
|
25 |
Front IR Assembly |
29H9215 |
|
26a |
Diskette Drive (3-mode) |
29H9230 |
|
|
Diskette Drive (4-mode) |
29H9372 |
|
|
CD-ROM Drive (8x) |
82H8851 |
|
26b |
Diskette Drive Removable Strap |
29H9237 |
|
27 |
Lower Shield |
29H9202 |
|
28 |
CPU Card (166 MHz, Pentium) |
82H8875 |
|
29 |
Heat Sink |
39H7006 |
|
30 |
See Misc. Parts | |
|
31 |
Internal DAA Assembly |
12J1571 |
|
31a |
Fan |
46H5762 |
|
31b |
Air Duct |
46H5763 |
|
32 |
DC/DC Card |
46H5750 |
|
33a |
See Misc. Parts | |
|
33b |
Cable |
29H9206 |
|
34 |
Power Switch Actuator |
29H9209 |
|
35 |
Power Switch Button |
29H9192 |
|
36 |
Rear IR Assembly |
29H9214 |
|
37 |
Keyboard Base |
29H9218 |
|
38 |
Keyboard Cable |
29H9222 |
|
39a |
Speaker (right) |
46H5777 |
|
39b |
Speaker (left) |
46H5778 |
|
39c |
Speaker Holder (right) |
39H7033 |
|
39d |
Speaker Holder (left) |
39H7034 |
|
40 |
Keyboard Card |
46H5776 |
|
41 |
Backup Battery |
29H9506 |
|
42 |
Palm Rest |
29H9219 39H7032 |
|
43 |
Keyboard Unit (See Keyboard Unit Section) | |
|
44 |
Top Cover |
29H9184 |
|
|
DIMM Card Holder |
46H5765 |
|
|
AC Adapter |
85G6705 |
|
Keyboard Misc. Parts |
39H7105 | |
|
Misc. Parts |
29H9235 | |
|
Screw for Fan |
46H5766 | |
|
Model Label |
46H5767 |
Keyboard Assembly
|
Arabic |
29H9076 |
|
Belgian |
29H9074 |
|
Canadian French |
29H9082 |
|
Danish |
29H9073 |
|
Dutch |
29H9071 |
|
French |
29H9067 |
|
German |
29H9065 |
|
Greek |
29H9080 |
|
Hebrew |
29H9077 |
|
Italian |
29H9069 |
|
Japanese |
29H9083 |
|
New World Spanish |
29H9081 |
|
Norwegian |
29H9075 |
|
Portuguese |
29H9078 |
|
Russian |
29H9084 |
|
Spanish |
29H9072 |
|
Swedish or Finnish |
29H9070 |
|
Swiss |
46H5989 |
|
Turkish |
29H9079 |
|
U.K. English |
29H9064 |
|
U.S. English |
29H9063 |
Keyboard Unit
|
Arabic |
46H5790 |
|
Belgian |
46H5788 |
|
Canadian French |
46H5796 |
|
Danish |
46H5787 |
|
Dutch |
46H5785 |
|
French |
46H5782 |
|
German |
46H5781 |
|
Greek |
46H5794 |
|
Hebrew |
46H5791 |
|
Italian |
46H5783 |
|
Japanese |
46H5797 |
|
Latain Spanish |
46H5795 |
|
New World Spanish | |
|
Norwegian |
46H5789 |
|
Portuguese |
46H5792 |
|
Russian |
46H5798 |
|
Spanish |
46H5786 |
|
Swedish or Finnish |
46H5784 |
|
Swiss |
46H5799 |
|
Turkish |
46H5793 |
|
U.K. English |
46H5780 |
|
U.S. English |
46H5779 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
11-11-97 | |
|
Last Updated |
05-04-99 | |
|
Revision Date |
03-03-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 760XD | |
|
Machine Type |
9546 | |
|
Model |
Various | |
|
