50.149 bytes |
Service Hints & Tips |
Document ID: COBN-3G5CW7 |
Aptiva - 2162 Removals and replacements - Cache memory
Applicable to: World-Wide
2055 - Cache Memory
Attention: Memory cards are sensitive to static discharge. See "Handling ESD-Sensitive Parts" on
page 4-16 of the Hardware Maintenence manual for your system.
Remove any adapter cards (2035) if necessary.
Remove the riser card (2045) if necessary.
Note: Run the Setup Utility after adding or removing memory.

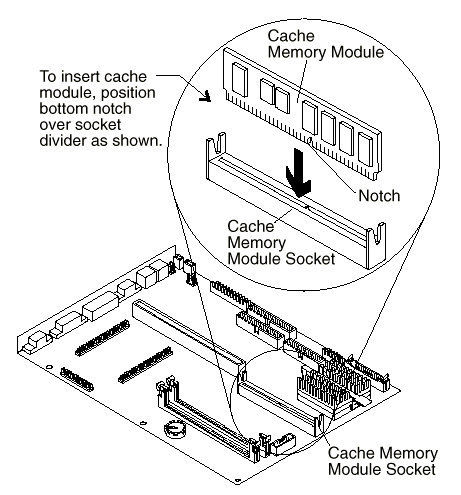

Figure 4-14. Cache Memory
|
