Aptiva - 2162 System board layout and locations
Applicable to: World-Wide

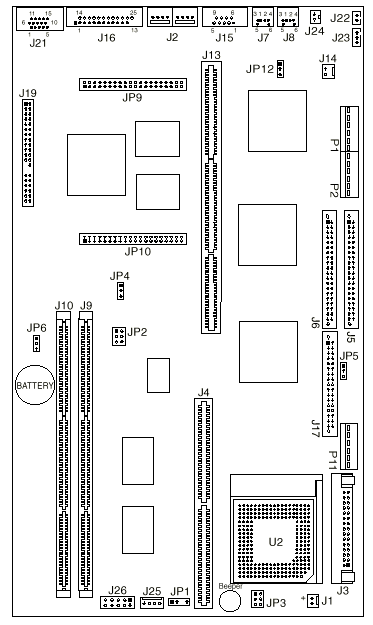

System Board Layout
System Board Locations
J1 |
Fan +12 V dc connector |
J2 |
USB (Universal Serial Bus) |
J3 |
System board voltage regulator connector |
J4 |
Cache connector |
J5 |
Primary Hard Disk IDE (Hard Disk 1, Hard Disk 2) |
J6 |
Secondary Hard Disk IDE (Hard Disk 3 or CD-ROM, Hard Disk 4) |
J7 |
Mouse connector |
J8 |
Keyboard connector |
J9 |
DIMM 168-pin Socket |
J10 |
DIMM 168-pin Socket |
J13 |
Riser ConnectorªPCI/ISA |
J14 |
External speaker power connector |
J15 |
Serial Port connector |
J16 |
Parallel Port connector |
J17 |
Diskette drive connector |
J19 |
VESA feature connector |
J21 |
Monitor signal connector |
J22 |
Power Supply 2-pin connector (On/off switch) |
J23 |
Power Supply 3-pin connector (Aux 5 V dc) |
J24 |
Wake Up On Ring connector |
J25 |
HDD/Power-on LED connector (HDD: 1-2, Power- |
J26 |
Media console connector - not used |
JP1 |
External speaker (Internal: 1-2, External: 2-4) |
JP2 |
System board bus clock (see Figure 5-2 on page 5-4) |
JP3 |
Core/Bus frequency ratio (see Figure 5-4 on page 5-5) |
JP4 |
System board flash jumper (Normal: 1-2, Write protect: 2 |
JP5 |
Diskette Drive (FDD) write enable (Enable: 1-2, Disable: |
JP6 |
CMOS, Power-on Password Reset (Normal: 1-2, Clear: 2-3) |
JP9 |
Video memory upgrade card connector |
JP10 |
Video memory upgrade card connector |
JP12 |
Home Director (Home Director: 1-2, Wakeup On Ring over Serial Port only: 2-3) |
P1,P2 |
Power supply connector |
P11 |
3.3 V dc Power supply connector |
U2 |
Processor |
