TP 390,390E,1720 - LED Board Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM
• Hard Disk Drive
• Keyboard

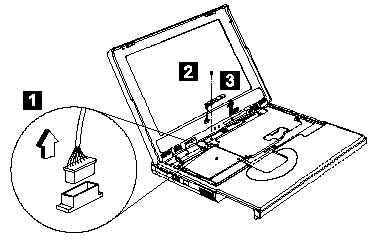

To remove the LED board:

1. Remove the screw securing the LED board then disconnect the LED cable from the connector.

2. Lift the LED board.

Step	Size (Quantity)	Head & Color	Torque
2	M2 x 4L (1)	Flat head, silver	2.0 kgf-cm

Note: Make sure you use the correct screw for replacement.

	Search Keywords
	Hint Category	Hardware Installation/Configuration
	Date Created	20-11-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 390, ThinkPad i Series 172x
	Machine Type	2626, 2627
	Model	Various
	TypeModel
