20.369 bytes |
Parts Information |
Document ID: COBN-3G5J2P |
Aptiva - 2162 Sound, modem & host card service parts
Applicable to: World-Wide

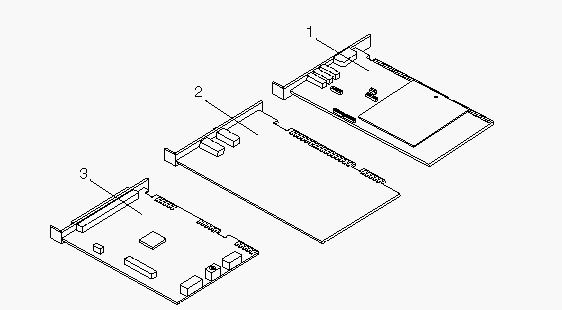

Assembly 5: Sound, Modem, and Host Cards
|
Asm- |
Part |
Units |
Description |
|
5-1 |
55H7240 |
Sound Card | |
|
-2 |
76H1761 |
33.6 Kbps Modem Card(US) | |
|
-2 |
76H6912 |
33.6 Kbps Modem Card(US/LA/BR) | |
|
-2 |
12J3996 |
55.6 Kbps Modem Card(US) | |
|
-2 |
76H1760 |
33.6 Kbps Modem Card (Japan) | |
|
-2 |
76H1758 |
33.6 Kbps Modem Card (EMEA) | |
|
-2 |
76H6943 |
33.6 Kbps Modem Card | |
|
-2 |
76H6945 |
33.6 Kbps Modem Card (Spain) | |
|
-2 |
76H6949 |
33.6 Kbps Modem Card (Portugal) | |
|
-2 |
76H6947 |
33.6 Kbps Modem Card | |
|
-3 |
76H6904 |
Media Console Host Card | |
|
-NS |
76H6978 |
Headset with microphone | |
|
-NS |
76H1616 |
Modem Audio Cable | |
|
-NS |
76H6974 |
Subwoofer (Model 25) | |
|
-NS |
76H6975 |
Sub-Woofer AC Power Cable (25) | |
|
-NS |
76H6976 |
Sub-Woofer Audio Cable (25) |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
14-04-97 | |
|
Last Updated |
07-04-99 | |
|
Revision Date |
07-04-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2162 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
