24.452 bytes |
Parts Information |
Document ID: GSMH-3BCENM |
TP SelectaDock I - Parts Listing
Applicable to: World-Wide

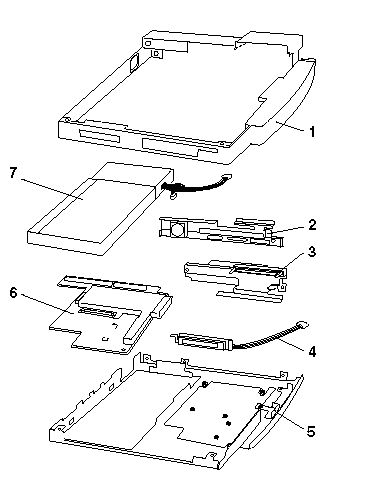

Parts Listing
|
1 |
Upper Cover |
39H7419 |
|
2 |
Fan ASM |
39H7420 |
|
3 |
Riser Card ASM |
39H7421 |
|
4 |
LCD ASM | |
|
5 |
Base Cover ASM |
39H7418 |
|
6 |
Main Board ASM |
39H7422 |
|
7 |
Power Supply Unit |
39H7417 |
|
Option Card Cover |
39H7423 | |
|
Miscellaneous Kit |
39H7431 | |
|
(Includes the following:) |
73H8594 |
Options
|
Tape Drive Kit |
84G1290 |
|
Bracket and Bezel |
84G1291 |
|
Shelf |
84G3631 |
|
Tray Cover |
84G3632 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
02-08-96 | |
|
Last Updated |
25-08-98 | |
|
Revision Date |
21-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad Docking Stations | |
|
Machine Type |
3547 | |
|
Model |
Various | |
|
TypeModel |
| |
|
