Parts Information

Document ID: DDSE-44JLGW

Netfinity 7000 - SCSI Backplane

Applicable to: World-Wide

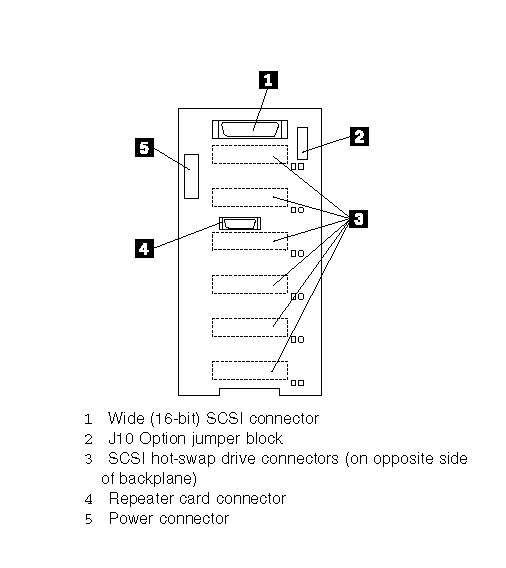

SCSI Backplane

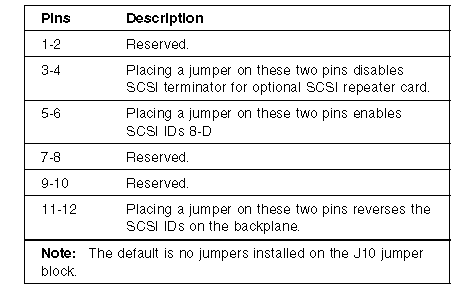

Jumper Settings: Processor Board Option
Jumper Block (J10)

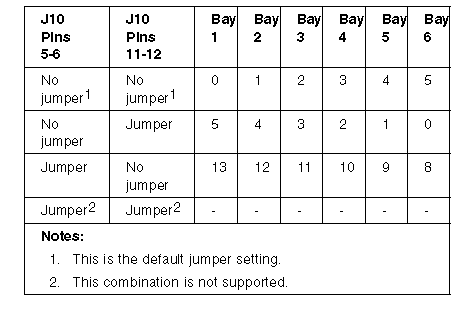

SCSI IDs that you can use for hot-swap drives.

	Search Keywords
	Document Category	Backplane
	Date Created	27-01-99
	Last Updated	27-01-99
	Revision Date	27-01-2000
	Brand	IBM PC Server
	Product Family	Netfinity 7000
	Machine Type	8651
	Model
	TypeModel
