189.072 bytes |
Parts Information |
Document ID: MCGN-3RKUX3 |
PC Server 330 - System Board and Jumper Settings
Applicable to: World-Wide

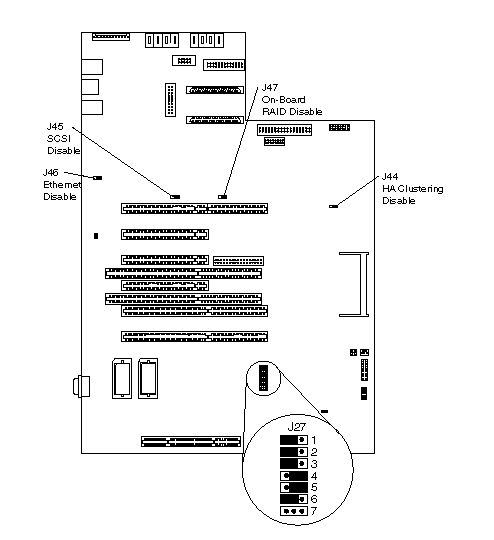

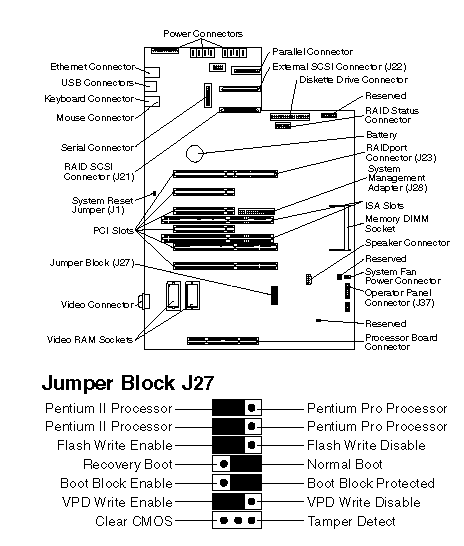

System Board

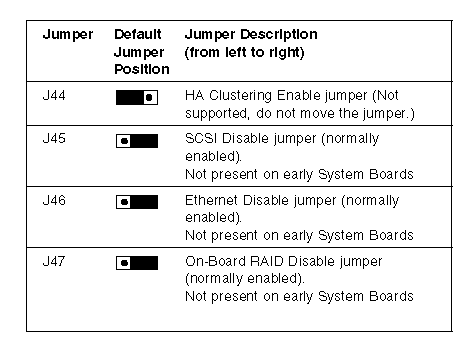

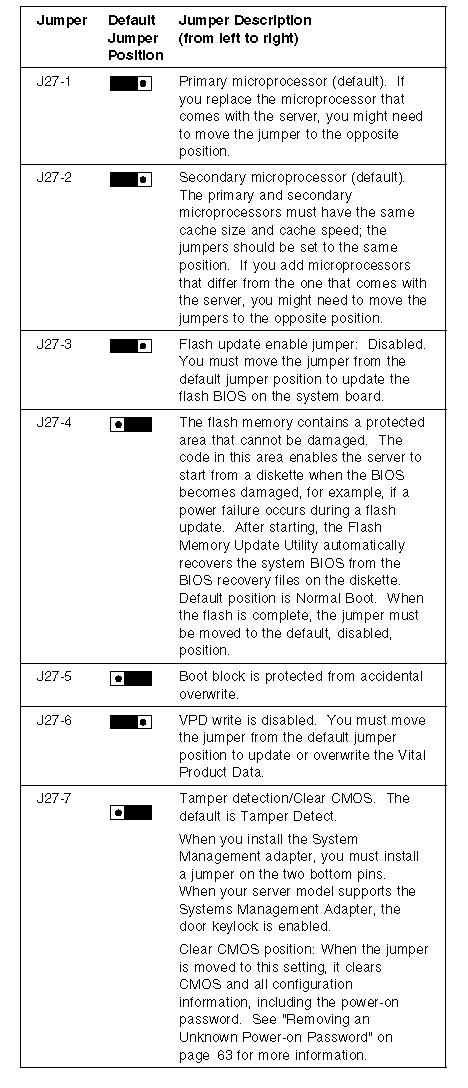

Jumper Settings
|
Search Keywords |
| |
|
Document Category |
System Boards | |
|
Date Created |
10-02-98 | |
|
Last Updated |
24-03-99 | |
|
Revision Date |
24-03-2000 | |
|
Brand |
IBM PC Server | |
|
Product Family |
PC Server 330 | |
|
Machine Type |
8640 | |
|
Model |
11Y; 21Y; PB0; PM0; PT0 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
