Parts Information

Document ID: DDSE-3ZGLEZ

Netfinity 3000 - Working with Drives in Bays 5 and 6 (Updated June '98)

Applicable to: World-Wide

Systems affected - all Netfinity 3000/Intellistation M Pro/PC 300PL

Working with Drives in Bays 5 and 6

Notes - Read "Working with Drives in Bays 1 through 4". - Read the documentation that comes with the drive.

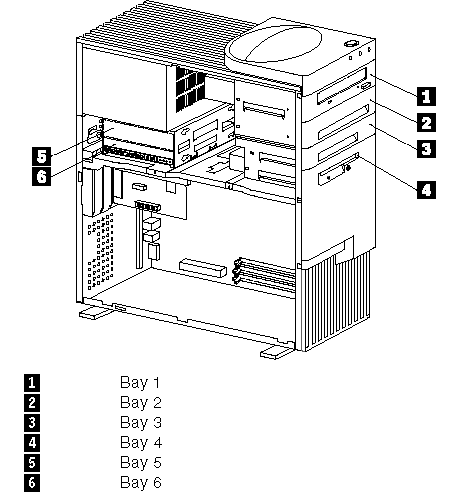

The following illustration identifies the server bays.

The drives in bays 5 and 6 must have nonremovable media. (In some models, the server comes with a hard disk drive in bay 6.) To install or remove drives in these bays, you must remove the rear (lower) drive cage.

Netfinity 3000 Hard Disk Drive-Installation Instructions
This information is being provided to ensure proper installation of hard disk drives in bays 5 and 6. This information replaces the hard disk drive-installation instructions in the Working with Drives in Bays 5 and 6 section of your Netfinity 3000 User's Handbook.

If you are installing a hard disk drive in bay 5 or 6, use the following procedure.
1. Review the Safety Information and Installing Options sections of your Netfinity 3000 User's Handbook.
2. If there is a hard disk drive in bay 5 or 6, disconnect the cable from the drive in that bay.
3. Remove the rear (lower) drive cage as described in the Installing or Removing Internal Drives section of your Netfinity 3000 User's Handbook.

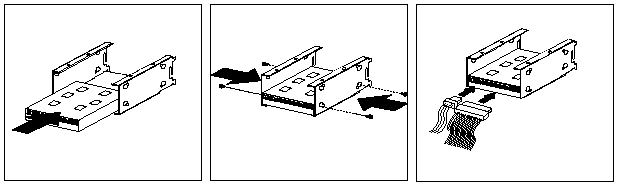

4. When you are installing a drive, turn the drive upside down and slide it into the desired bay. This ensures that the drive connectors will properly align with and attach to the cable connectors. Secure the drive with the screws. See the illustration below.
Note: When using the rubber grommets (washers) to attach the drive to the rear drive cage, you must use the screws provided in the tray in bay 2.
5. Reinstall the rear drive cage as described in your Netfinity 3000 User's Handbook.
6. Attach the cables to the drive.

For future reference, store this Technical Update with your server manuals.

Attaching hard disks
Eight (8) screws, P/N 76H3381, are installed in every Netfinity 3000/Intellistation M Pro/PC 300PL system in a spare DASD tray which is attached to Bay 2 DASD bay (under the CD ROM).

Four (4) screws are supplied in a pack, P/N 01K1891, for open bay models which can be found in the server country support pack.

	Search Keywords
	Document Category	Hard Drives
	Date Created	21-10-98
	Last Updated	03-11-98
	Revision Date	03-11-99
	Brand	IBM PC Server
	Product Family	Netfinity 3000
	Machine Type	8476
	Model	ALL
