Service Hints & Tips |
Document ID: LWIK-3PEL2X |
TP 310,315 - Battery Pack and Battery Pack Door
Applicable to: World-Wide
Battery Pack and Battery Pack Door:

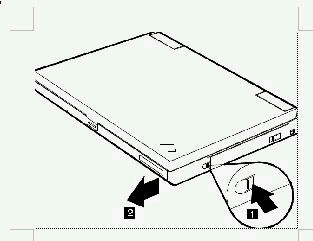

1. Press the battery cover release latch (1) and slide out (2) the battery cover.
2. Locate the pull tab (3) of the battery; pull the tab to remove the battery out of the battery bay.
3. Insert the new battery into the battery bay (with the connector side up) until you feel the contacts enage.
4. Replace the battery bay door.
5. Press the power switch.
|
Search Keywords |
| |
|
Hint Category |
Installation/Removal Procedures | |
|
Date Created |
03-12-97 | |
|
Last Updated |
29-04-98 | |
|
Revision Date |
28-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 310, ThinkPad 315 | |
|
Machine Type |
2600 | |
|
Model |
Various | |
|
TypeModel |
| |
|
