Parts Information |
Document ID: LWIK-3TKNSC |

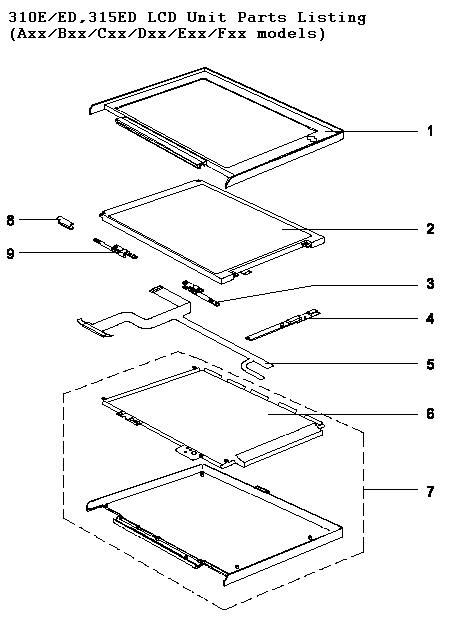

TP 310E/ED,315ED - LCD unit FRU parts list (Axx/Bxx/Cxx/Dxx/Exx/Fxx models)
Applicable to: World-Wide
|
Item # |
Description |
FRU # |
|
1 |
12.1" DSTN LCD bezel (with logo) |
12J0494 |
|
12.1" TFT LCD bezel (with logo) |
05K4863 | |
|
11.3" TFT LCD bezel (with logo) (2600-EXX) |
11J8576 | |
|
2 |
12.1" DSTN LCD |
12J0492 |
|
12.1" TFT LCD |
05K9338 | |
|
11.3" TFT LCD (2600-EXX) |
05K9356 | |
|
3 |
LCD hinge (R) |
11J8652 |
|
4 |
LCD inverter |
11J8589 |
|
5 |
12.1" DSTN LCD FPC cable (with LCD cable diaper) |
12J0493 |
|
12.1" TFT LCD FPC cable (with LCD cable diaper) |
05K2647 | |
|
11.3" TFT LCD FPC cable (with LCD cable diaper) (2600-EXX) |
11J8578 | |
|
6 |
- | |
|
7 |
12.1" DSTN LCD cover (with logo and LCD diaper and left hinge) |
12J0495 |
|
12.1" TFT LCD cover (with logo and LCD diaper and left hinge) |
05K4864 | |
|
11.3" TFT LCD cover (with logo and LCD diaper and left hinge) (2600-EXX) |
05K5231 | |
|
8 |
- | |
|
9 |
LCD hinge (L) |
12J0527 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
15-04-98 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 310, ThinkPad 315 | |
|
Machine Type |
2600 | |
|
Model |
Various | |
|
