Service Hints & Tips |
Document ID: DSHY-44HUYJ |
TP 600E - Default Diskette Factory
Applicable to: World-Wide
To create the device driver diskettes for your ThinkPad for Windows 95, Windows 98, or Windows NT follow these instructions.
1. Click on Start, Programs, ThinkPad 600, and then Diskette Factory.

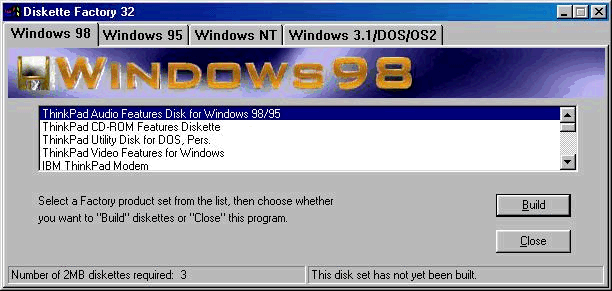

2. At the Diskette Factory 32 window, select the the Operating System you want to create the device driver diskettes for, then highlight the diskette image you want to create and click on Build.
Note:
The drivers are also available from diskette factory on the Thinkpad Customization CD.
To access diskette factory from the Customization CD:
1. Run SYSMGR.EXE (The Thinkpad Customization Center) from the CD
(Note: if AutoRun is enabled this application will start automatically when the CD is inserted.
2. Select System Customization
3. Select Diskette Factory
The tables below list the diskettes you can create for each operating system.
Version numbers marked with an * have updated drivers available on the web.
Windows 98 Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad Audio Features Diskette for Windows 95/98 |
3 |
v2.83 |
27i8155 |
|
ThinkPad CD-ROM Features Diskette |
1 |
v3.12 |
27i2648 |
|
ThinkPad Utility Disk for DOS, Pers. |
1 |
v4.13 |
27i8139 |
|
ThinkPad Video Features for Windows |
1 |
1.17.05Q |
27i8205 |
|
IBM ThinkPad Modem |
2 |
v2.50 |
27i8168 |
|
PC Card Feature Diskette for SelectaDock I/II |
1 |
v1.01 |
27i3363 |
|
TrackPoint4 Device Driver for Windows 95/98/NT |
1 |
v1.09 |
27i8165 |
|
ThinkPad Utility Disk for Windows |
2 |
v1.01a |
27i8385 |
|
ThinkPad Utility Data Disk (II) for Windows 98 |
1 |
v1.00 |
27i8142 |
|
ThinkPad Utility Driver Diskette for Windows 95 |
1 |
v1.01 |
27i8201 |
|
Windows 98 Supplement File Diskette Version 1.00 |
1 |
v1.02 |
27i8266 |
|
ConfigSafe for Windows |
2 |
v2.00.02 |
CFGSAFE |
|
IBM Internet Connection |
1 |
v4.18.1 |
IGN |
|
Intelliquest - IBM Registration |
1 |
v2.1 |
INTQUEST |
|
Total number of diskettes: |
19 |
. |
. |
Windows 95 Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad Audio Features Diskette for Windows 95/98 |
3 |
v2.83 |
27i8155 |
|
ThinkPad CD-ROM Features Diskette |
1 |
v3.12 |
27i2648 |
|
ThinkPad Utility Disk for DOS, Pers. |
1 |
v4.13 |
27i8139 |
|
ThinkPad Video Features for Windows |
1 |
v1.17.05Q |
27i8205 |
|
IBM ThinkPad Modem |
2 |
v2.50 |
27i8168 |
|
ThinkPad CardWorks for Windows 95 |
2 |
v5.32 |
27i8162 |
|
SelectaDock I/II Diagnostic Diskette |
1 |
v1.01 |
22I2314 |
|
TrackPoint4 Device Driver Disk II for Windows 95/98/NT |
1 |
v1.09 |
27i8165 |
|
ThinkPad Utility Disk |
1 |
v4.13a |
27i8384 |
|
ThinkPad Utility Data Disk |
1 |
v1.01 |
27i2651 |
|
ThinkPad Utility Driver Diskette for Windows 95 (UltraBay) |
1 |
v1.01 |
27i8201 |
|
Windows 95 Supplement File Diskette Version 1.00 |
1 |
v1.02 |
27i8172 |
|
Total number of diskettes: |
16 |
. |
. |
Windows NT Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad Audio Features Disk for Windows NT 4.0 |
1 |
v1.91 |
27i8158 |
|
ThinkPad Utility Disk for DOS, Pers. |
1 |
v4.13 |
27i8139 |
|
ThinkPad Video Features for Windows NT 4.0 |
1 |
v4.12Q |
27i8206 |
|
ThinkPad IDE Driver |
1 |
v1.00 |
05k8490 |
|
ThinkPad Infrared Features for Windows NT |
1 |
v1.12 |
27i8151 |
|
IBM ThinkPad Modem |
2 |
v2.50 |
27i8168 |
|
ThinkPad CardWizard for Windows NT 4.0 |
1 |
v3.10 |
27i8164 |
|
TrackPoint4 Device Driver Disk for Windows 95/98/NT |
1 |
v1.09 |
27i8165 |
|
ThinkPad Utility Disk for Windows NT 3.51\4.0 |
1 |
v4.13 |
27i8137 |
|
ThinkPad Utility Data Disk |
1 |
27i2651 | |
|
Total number of diskettes: |
14 |
. |
. |
Windows 3.1/DOS/OS2
The OS/2 and DOS/Windows 3.11 drivers are not available through diskette factory. You can download them from the Internet by clicking here, and going to the ThinkPad 390 Series Device Driver File Matrix
|
