Service Hints & Tips

Document ID: BMOE-425J6X

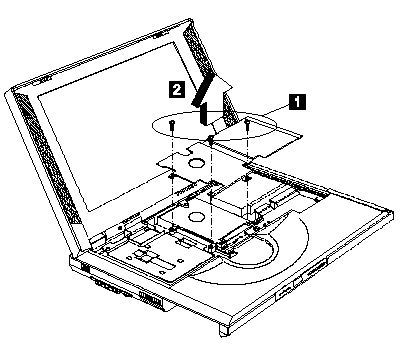

TP 1400 - Hard Disk Drive and HDD Heatsink Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M2.5 x 6L (3)	Bind head, black	3.2 kgf-cm	w/ nylok paste

Note: Make sure you use the correct screw for replacement.

	Search Keywords
	Hint Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	11-11-98
	Revision Date	11-11-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
	TypeModel
