PCServer330 - Operator Panel Status Indicators

Applicable to: World-Wide

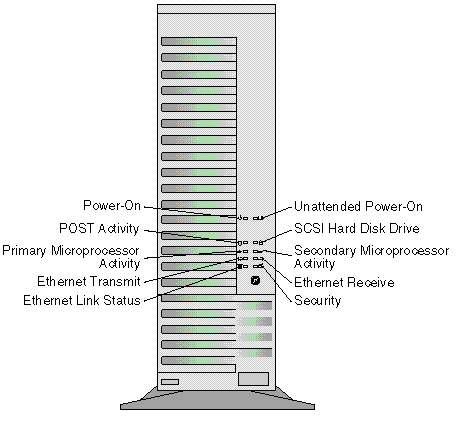

Operator Panel Status Indicators:

Unattended Power-On Indicator:

This green LED lights when the server powers on in the Unattended mode.

SCSI Hard Drive In-Use Indicator:

This amber LED lights when your server is accessing a SCSI device. If this light remains illuminated, this might indicate that either the SCSI bus or the system microprocessor has stopped.

Secondary Microprocessor In-Use Indicator:

This amber LED blinks to show the activity of a microprocessor installed in the secondary microprocessor socket. The LED lights during POST to indicate the presence of the microprocessor. When you install a secondary microprocessor, it becomes the startup microprocessor.

Ethernet Receive Indicator:

This amber LED shows reception activity on the network.

Security Indicator:

When tamper-detection software is installed and enabled, this amber LED shows that a security hardware or software error occurred.

Ethernet Link Status Indicator:

This green LED shows an active link connection on the 10BASE-T interface.

Ethernet Transmit Indicator:

This amber LED shows transmission activity on the network.

Primary Microprocessor Activity Indicator:

This amber LED blinks to indicate the activity of the microprocessor; it also comes on during POST.

POST Activity Indicator:

This amber LED lights while the power-on self test (POST) and the configuration utility programs are running. If this LED remains illuminated, either a POST error has occurred, or the system microprocessor has stopped.

Power-On Indicator:

This green LED lights when you turn on your server by pressing the power switch, and when the server powers on in the Unattended mode.
