Parts Information |
Document ID: GSMH-3BTDVM |
TP 701 - Parts Listing
Applicable to: World-Wide
Parts Listing:

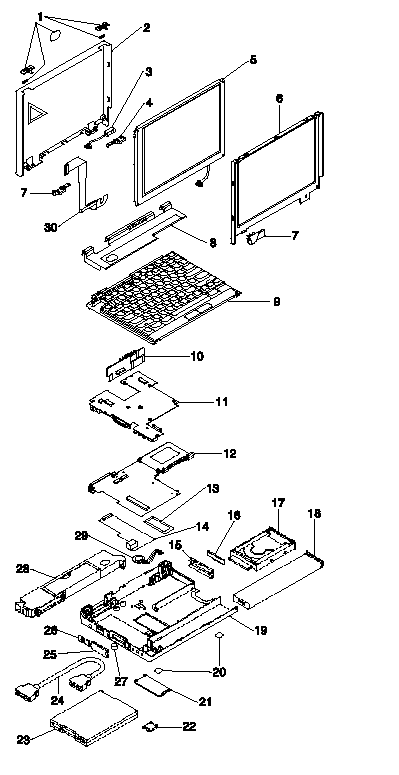

System Unit (TP701C/CS)
|
Index |
FRU |
Part Number: |
|
1 |
Latch Kit |
04H8327 |
|
2 |
Display Cover Assembly |
04H8326 |
|
3 |
Microphone |
04H8328 |
|
4 |
Right Hinge |
04H8388 |
|
5 |
Color LCD (TP701CS.) |
04H8333 |
|
5 |
Color LCD (TP701C) |
04H8331 |
|
6 |
LCD Bezel (TP701CS) |
04H8325 |
|
6 |
LCD Bezel (TP701C) |
04H8332 |
|
7 |
Left Hinge |
04H8389 |
|
8 |
Keyboard Shelf |
04H8336 |
|
9 |
See Keyboard List | |
|
10 |
Inverter card/Infrared Transceiver |
04H8347 |
|
11 |
Top System Board |
04H8343 |
|
12 |
Bottom System Board (25/50MHz) |
04H8342 |
|
12 |
Bottom System Board (25/75MHz) |
25H4883 |
|
13 |
SO-DIMM | |
|
14 |
Modem |
04H8341 |
|
15 |
PCMCIA Cover |
04H8346 |
|
16 |
PCMCIA Filler Plug |
04H8348 |
|
17 |
360MB Hard Disk Drive |
04H6829 |
|
17 |
540MB Hard Disk Drive |
04H6830 |
|
17 |
720MB Hard Disk Drive |
10H4046 |
|
18 |
Battery Pack NiCD |
04H6898 |
|
For Worldwide Use (Including Benelux) |
04H6902 | |
|
18 |
Battery Pack NiMH |
04H6197 |
|
19 |
Base Assembly |
04H8335 |
|
20 |
Base Feet Kit |
04H8390 |
|
21 |
SO-DIMM Door |
04H8337 |
|
22 |
Standby Battery Door |
04H8338 |
|
23 |
Diskette Drive |
10H4056 |
|
For Japan |
10H4055 | |
|
24 |
Diskette Drive Cable |
04H6916 |
|
25 |
Parallel Port Door |
04H8340 |
|
26 |
Power Switch Cover |
04H8349 |
|
27 |
Standby Battery |
04H8345 |
|
28 |
Multiport II |
04H6915 |
|
29 |
Speaker |
04H8344 |
|
30 |
LCD Cable |
04H8329 |
|
Parallel Port Cable |
04H8359 | |
|
Screen for Speaker |
10H4086 | |
|
Speaker Gasket |
04H8383 | |
|
Docking Door |
04H8339 |
Keyboards:
|
Arabic |
04H8319 |
|
Belgian |
04H8317 |
|
Canadian French |
04H6918 |
|
Danish |
04H8316 |
|
Dutch |
04H8318 |
|
French |
04H8310 |
|
German |
04H8311 |
|
Greek |
04H8322 |
|
Hebrew |
04H8320 |
|
Italian |
04H8309 |
|
Japanese |
04H8323 |
|
Latin American |
04H6919 |
|
Norwegian |
04H8314 |
|
Portuguese |
04H8312 |
|
Spanish |
04H8308 |
|
Swedish/Finnish |
04H8313 |
|
Swiss/French |
04H8315 |
|
Swiss/German |
04H8373 |
|
Turkish |
04H8321 |
|
U.K. English |
04H8307 |
|
U.S. English |
04H6917 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
27-11-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 701 | |
|
Machine Type |
2630 | |
|
Model |
Various | |
|
