Aptiva - Power supply cable connector specifications
Applicable to: World-Wide
Power Supply Cable Connector Specifications:
Refer to the following figures when checking voltages for power supply connectors and cables.
When checking voltages, the power supply fan must be running. To power on the power supply without using the on/off switch, use a screwdriver or other tool to connect pins 2 and 3 on connector J30 (with the switch cable plug disconnected from the connector on the system board).
Figure 1-7. Connector J30 on System Board

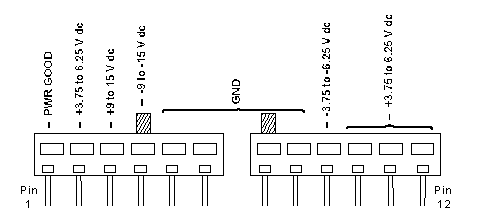

Figure 1-8. System Board Power Supply Connectors (J8 Bottom View)
Figure 1-9. Hard Drive or CD-ROM Power Cable Connector
Figure 1-10. 3.5-In. Diskette Drive Power Cable Connector
