Parts Information

Document ID: DDSE-42ZHYS

Netfinity 5500 - DASD Backplane Removal

Applicable to: World-Wide

DASD Backplane Removal

Before you begin: Read "Safety Information".

To remove the DASD backplane, do the following:

1. Remove the top cover (see "Top Cover Removal").

2. To access the cable(s) attached to the DASD backplane, slide the shuttle to the rear of the system, see "Shuttle Removal".

3. Disconnect the DASD backplane cables.

4. Remove the DASD backplane.

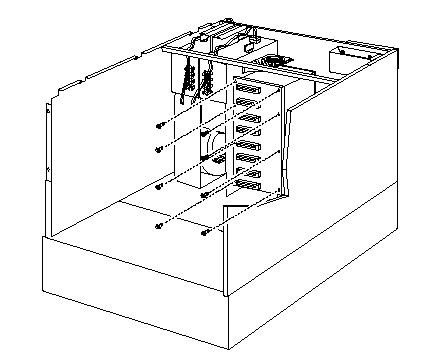

a. Remove the DASD backplane screws, then; remove the DASD backplane.

	Search Keywords
	Document Category	Backplane
	Date Created	09-12-98
	Last Updated	09-12-98
	Revision Date	09-12-99
	Brand	IBM PC Server
	Product Family	Netfinity 5500
	Machine Type	8660
	Model	ALL
