Aptiva - 2134/2176 CD-ROM 6x FRU 75H9601 (SL-A)
Applicable to: World-Wide
|
Primary Manufacturer |
Teac |
|
Support |
World-wide |
|
Photo CD Support |
Yes (XA multi-session) |
|
Loading Method |
Automatic tray |
|
Interface |
IDE |
|
Standards |
ATAPI |
|
Data Capacity | |
|
Mode 1 |
680 MB |
|
Mode 2 |
770 MB |
|
Data Transfer Rate (Sustained) |
900 KB/sec (Mode 1) |
|
Access Time | |
|
Random Access Time (maximum) |
180 ms |
|
Maximum Access Time (maximum) |
500 ms |
|
Spin-up Time |
|
|
From Stand-by to Ready |
5 sec (typical) |
|
From Power-on to Ready |
15 sec (typical) |
|
Physical Specifications | |
|
Size |
198mm x 43mm x 149mm |
|
Environmental Temperature | |
|
Operating |
0 to 40 C |
|
Storage |
-30 to 55 C |
|
Maximum rate of change |
12 C per Hour |
|
Relative Humidity | |
|
Operating |
20% to 80% |
|
Non-operating |
5% to 90% (no condensation) |

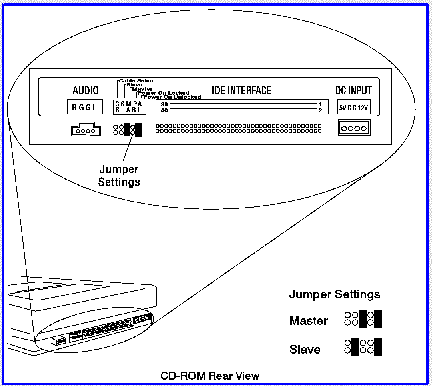

Jumper Settings
|
