ServeRAID 3H - Locations

Applicable to: World-Wide

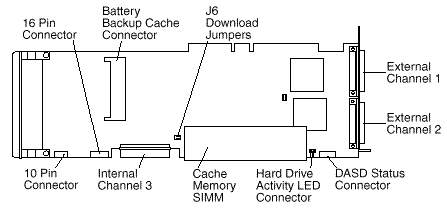

Locations (IBM Netfinity ServeRAID 3H Ultra2 SCSI Adapter)

(FRU no. 01K7396)

Download Jumper Locations:

• J6 consists of 4 pins that accept 2 jumper blocks.
• Install jumper blocks in either of the positions shown below (with respect to the card layout above) to enable Download via Bootblock.
•
  Note: This procedure is only needed if a download by code block does not work.

• The Default position is to have no jumper blocks installed.
