Parts Information |
Document ID: JBAR-3ZXR92 |

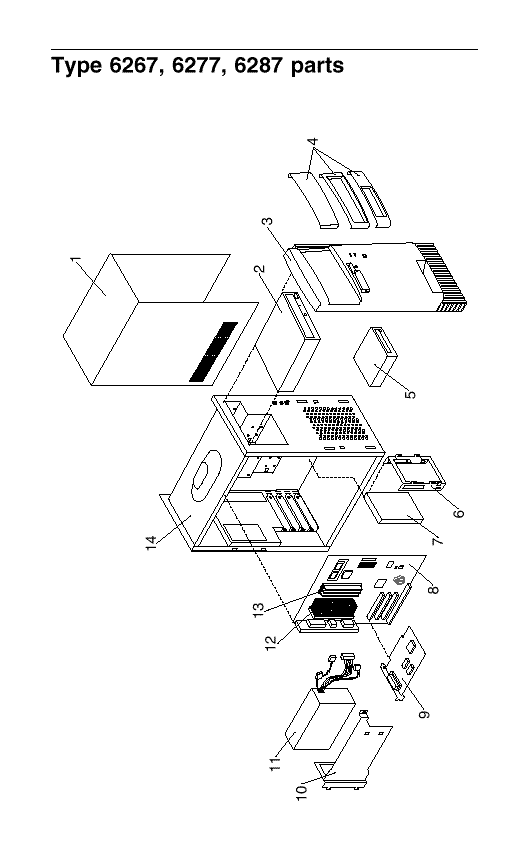

IBM PC300GL (Type 6267, 6277, 6287) - Parts Diagram/FRU Listing
Applicable to: World-Wide
|
|
Parts listing | |
|
Index |
System (Type 6267, 6277, 6287) |
FRU No. |
|
1 |
Top Cover |
10L5519 |
|
|
(Order either of the below 32X Max CD-ROM drives) | |
|
2 |
CD-ROM (32X Max) |
28L1635 |
|
2 |
CD-ROM (32X Max) |
28L1641 |
|
2 |
CD-ROM (40X Max) |
36L8747 |
|
3 |
Front Bezel (Panel) assembly |
10L5520 |
|
4 |
Bezel Kit |
20L3089 |
|
|
Includes: | |
|
5.25-Inch Blank Bezel | ||
|
5.25-Inch Frame Bezel | ||
|
3.5-Inch Blank Bezel | ||
|
3.5-Inch Frame Bezel | ||
|
5 |
1.44 MB, 3.5-Inch Diskette Drive |
75H9550 |
|
5 |
1.44 MB, 3.5-Inch Diskette Drive (Japan) |
75H9552 |
|
6 |
Hard Disk Mounting Bracket |
10L5521 |
|
7 |
3.2 GB EIDE Hard Disk Drive |
10L6006 |
|
7 |
4.2 GB EIDE Hard Disk Drive |
12J3143 |
|
7 |
8.4 GB EIDE Hard Disk Drive |
10L5996 |
|
7 |
12.8 GB EIDE (ATA-33) Hard Disk Drive |
36L8635 |
|
7 |
12.8 GB EIDE (ATA-66) Hard Disk Drive |
36L8683 |
|
7 |
20.4 GB EIDE Hard Disk Drive |
36L8711 |
|
8 |
System Board for Celeron processors (no audio, no processor, no memory) |
01K4446 |
|
8 |
System Board for Pentium II, Pentium III processors (no audio, no memory, no processor) |
01K4451 |
|
9 |
Ethernet Adapter - Lake Clark 2.2 (6277, models 35X, 51X, 55X, 70X, 87X - 6287, models 17X, 25X, 26X, 28X, 29X, 50X) |
30L5929 |
|
10 |
Power Supply Bracket |
20L3087 |
|
11 |
Power Supply-145W |
01K9870 |
|
11 |
Power Supply-145W (China) |
36L8815 |
|
11 |
Power Supply-145W (Japan) |
20L2314 |
|
12 |
Intel Celeron Processor 300 MHz, 128 KB cache |
28L5017 |
|
12 |
Celeron Processor 333 MHz, 128 KB cache |
01K4447 |
|
12 |
Celeron Processor 366 MHz, 128 KB cache |
33L2867 |
|
12 |
Celeron Processor 400 MHz, 128 KB cache |
37L4732 |
|
12 |
Processor, Pentium II 350 MHz |
01K4333 |
|
12 |
Processor, Pentium II 400 MHz |
01K4334 |
|
12 |
Processor, Pentium II 450 MHz |
01K1578 |
|
12 |
Processor, Pentium III 450 MHz |
33L1614 |
|
12 |
Processor, Pentium III 500 MHz |
33L1615 |
|
13 |
Memory - 32 MB DIMM, Non-Parity |
01K1146 |
|
13 |
Memory - 64 MB DIMM, Non-Parity |
01K1147 |
|
13 |
Memory - 128 MB DIMM, Non-Parity |
01K1148 |
|
14 |
Base Frame Assembly |
20L3085 |
|
|
Cable - CD-ROM Audio |
75H9219 |
|
|
Cable - CD-ROM, IDE (2 drop) |
01K1515 |
|
|
Cable - Diskette Drive |
01K1513 |
|
|
Cable - Hard Disk Cable, EIDE |
01K1514 |
|
|
EMC Shield for 3.5-Inch Bay |
20L3074 |
|
|
EMC Shield for 5.25-Inch Bay |
20L3073 |
|
|
EMC Shield Kit for System Board |
20L3083 |
|
|
Foot (4) |
03K9655 |
|
|
LED/Power Switch Assembly |
10L5534 |
|
|
Lithium Battery |
33F8354 |
|
|
Miscellaneous Hardware Kit |
20L3094 |
|
|
Modem - Domestic |
01K4459 |
|
|
Modem - Universal - EMEA and Asia Pacific South |
01K4461 |
|
|
7 ft. RJ11 Modem/Telephone Cable |
00K8183 |
|
|
Processor Mounting Bracket (Goal Post) |
20L3091 |
|
|
Speaker with Cable Assembly |
01K4909 |
|
|
ZIP Drive - Iomega |
28L1605 |
|
