Aptiva - 2144 (Service Level H/I) Removals and replacements - Adapter cards
Applicable to: World-Wide
1035 - Adapter Cards
- Remove any cables (note location of cables).
- Reset jumpers on adapter cards.

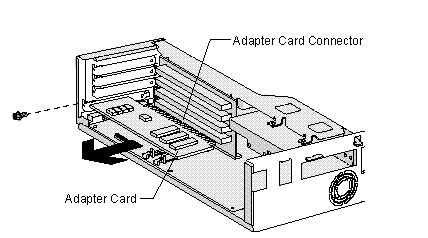

Figure 1-9. Adapter Cards
Note:
When reinstalling a modem adapter card, ensure the modem Wake Up on Ring cable is connected from the 2-pin keyed connector on the modem to the system board. See " System Board Layout - Type I-1" and "System Board Layout - Type I-2 for connector locations.
|
