Service Hints & Tips |
Document ID: GSMH-3ETDKD |
TP 560/E - Locations Front View
Applicable to: World-Wide

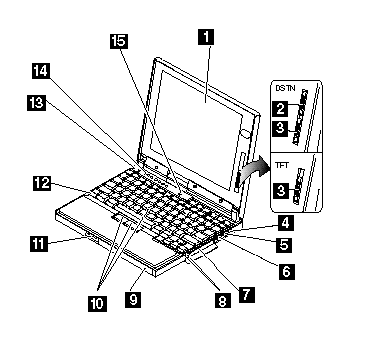

Front View:
|
1 |
LCD |
|
2 |
Contrast Control |
|
3 |
Brightness Control |
|
4 |
Headphone Jack |
|
5 |
Microphone/Line-In Jack |
|
6 |
Volume Control |
|
7 |
PCMCIA Slots |
|
8 |
PC Card Eject Buttons |
|
9 |
Battery Pack |
|
10 |
TrackPoint III |
|
11 |
LCD Latch |
|
12 |
Fn Key |
|
13 |
Keyboard |
|
14 |
Indicator Panel |
|
15 |
Built-In Microphone |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
03-03-97 | |
|
Last Updated |
01-04-98 | |
|
Revision Date |
14-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560, ThinkPad 560E | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
