Service Hints & Tips |
Document ID: LWIK-3SMKSB |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 310,315 - Diskette Drive and CD-ROM Drive
Applicable to: World-Wide
Diskette Drive/CD-ROM Drive:
- Hinge Covers (5)
- Keyboard Unit (6)
- Thermal plate / CPU (7)

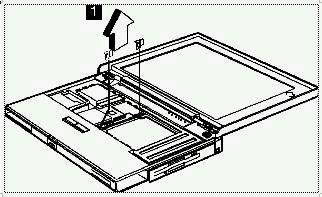

Important:
When removing the module locks, pull them up at an angle. They cannot be removed when pulled straight up.

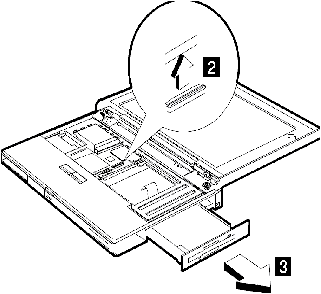

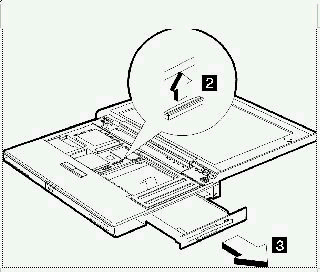

Diskette Drive (Model Unique):

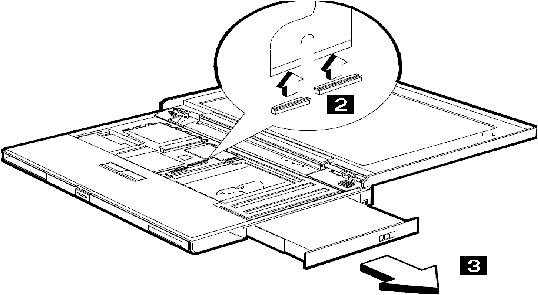

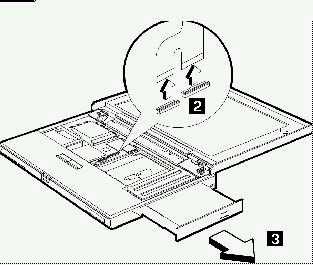

CD-ROM Drive (Model Unique)
Warning:
Do not open the CD-ROM; no user adjustments or serviceable parts are inside. Use of controls, adjustments, or the performance of procedures other than those specified may result in hazardous radiation exposure.
Caution:
Do not push on the top surface of the CD-ROM drive.
|
