Service Hints & Tips |
Document ID: JBAR-3V5PBS |
IBM IntelliStation/IBM PC - 20 pin main power supply connection
Applicable to: World-Wide

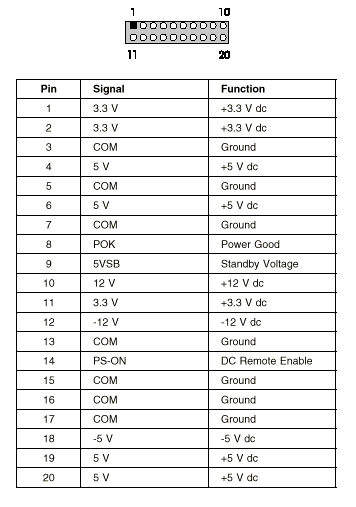

20-Pin Main Power Supply Connection:
The 20-pin main power supply connector is located on the riser card for PC 300, Types:
6275, 6285
6561, 6591
6562, 6592
6862, 6892
For PC360-S150 and all IntelliStation models, the 20-pin main power supply connector is located on the system board.
See Riser Card Layouts and System Board Layouts for connector location.
Attention:
These voltages must be checked with the power supply cables connected to the system board or riser card.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
04-06-98 | |
|
Last Updated |
11-06-98 | |
|
Revision Date |
09-06-99 | |
|
Brand |
IBM IntelliStation, IBM PC | |
|
Product Family |
M Pro, Z Pro, E Pro, PC 300GL, PC 300XL, PC 300PL, PC 360 | |
|
Machine Type |
6888, 6889, 6898, 6899, 6893, 6275, 6285, 6561, 6591, 6588, 6562, 6592, 6862, 6892, 6598 | |
|
Model |
all | |
|
