Service Hints & Tips |
Document ID: RMIE-3G6CRW |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 365X/XD - ECA002 Base shield upgrade kit
Applicable to: World-Wide, World-Wide
|
Record number: |
H137343 |
Service code: |
33 |
|
Device |
D/T2625 |
Parts source: |
LOC |
|
ECA number |
ECA002 |
Publishing flag: |
R |
|
EC number: |
ECF00806 |
Hit count |
UHC00093 (USA) |
|
Mandatory: |
N |
Success count: |
USC0000 |
|
Automatic shipment: |
N |
Publication code: |
PC40 |
|
Availability date: |
97/04 |
Date created: |
O97/04/11 |
|
Plant of control: |
23 |
Date last altered: |
A97/04/11 (USA) |
|
Tip key: |
|
Owning B.U.: |
USA, EMA |
Abstract :
2625 365X & XD Base Shield Upgrade Kit
Purpose :
Install the Base Shield ECA Kit on systems that match the PHYSICAL CHECK criteria.
FEATURES:
|
Type, |
With B/M |
Machines Affected |
B/M to be |
Service |
System |
|
2625 |
B/M9999999 |
365X/XD |
B/M9999999 |
00.3 |
00.1 |
Physical Check :
Inspect for an ECA label or black mark beneath the battery at the front inner edge of the system base. If this area is blank, install the Base Shield ECA Kit during the installation of any FRU listed in figure 1.
|
Parts Description |
FRU P/N |
|
System board card assembly |
69H7908 |
|
CPU card assembly |
69H7912 (P100) |
|
74H0237 (P120) | |
|
82H8162 (P133) | |
|
Base cover assembly |
69H7903 |
|
Base Insulator (*) |
69H7916 |
Detail :
The inner bottom of the system is covered with an aluminum mylar sheet, except for two 31mm square areas. The Shield Kit should be installed in these areas during a repair action on any FRU listed in Fig 1 of the PHYSICAL CHECK.

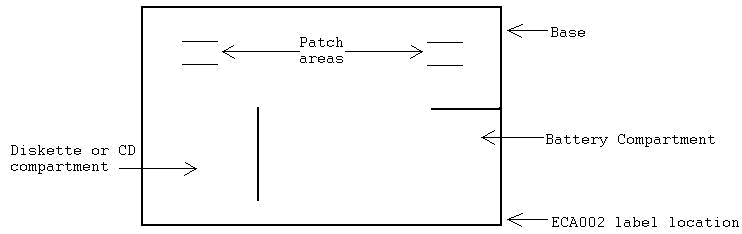

The kit is FRU P/N73H8598. It contains self stick aluminum mylar patches and detailed instructions. The patches should be placed in the blank spots located on the inside the base at the external leg indents. The ECA002 Label should be placed beneath and in front of the battery at the front edge of the system base. Both of these locations are shown in the following diagram and in detail in the instruction sheet.
Notes :
This ECA will expire on April 30, 2000. Order FRU Kit P/N73H8598 locally and record all time to ECA002 other office worked 990.
|
Search Keywords |
| |
|
Hint Category |
ECA, General Information | |
|
Date Created |
15-04-97 | |
|
Last Updated |
21-12-98 | |
|
Revision Date |
21-12-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
H137343,H057302 | |
|
