TP 365X/XD - ECA005 LCD cover cracks in hinge areas
Applicable to: World-Wide
|
Record number: |
H137702 |
Service code: |
33 |
|
Device |
D/T2625 |
Parts source: |
LOC |
|
ECA number |
ECA005 |
Publishing flag: |
R |
|
EC number: |
ECF06828 |
Hit count |
UHC00155 |
|
Mandatory: |
N |
Success count: |
USC0000 |
|
Automatic shipment: |
N |
Publication code: |
PC40 |
|
Availability date: |
97/10 |
Date created: |
O97/10/14 |
|
Plant of control: |
24 |
Date last altered: |
A98/12/03 |
|
Tip key: |
|
Owning B.U.: |
USA |
PURPOSE:
Replace LCD covers with cracks in the hinge, lower cover edge, or internal LCD boss areas.
FEATURES:
|
Type, |
With B/M |
Machines Affected |
B/M to be |
Service |
System |
|
2625 |
B/M9999999 |
Model 1*9, 2*9, F*9, E*F |
B/M9999999 |
00.4 |
00.3 |
PHYSICAL CHECK:

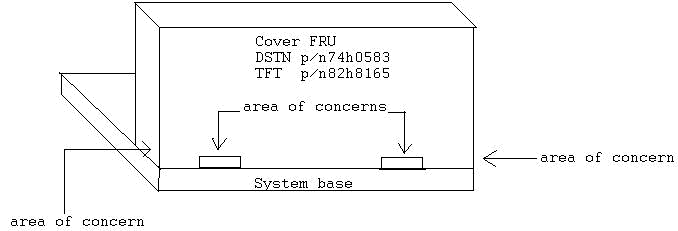

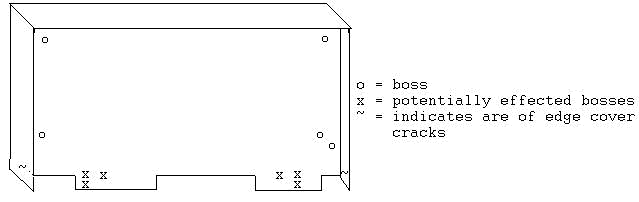

Check for cracks in the hinge area, lower LCD cover edge or in the area of the internal LCD attachment bosses as shown in the following diagrams.
DETAIL:
A new more robust plastic is being used in the LCD cover to prevent premature cracking at the side tabs of the cover, in the area of the hinges, and in the area of the internal LCD attachment bosses. Any LCD covers on systems identified in the FEATURES Section should be replaced with the following LCD cover FRUs.
NOTE: the LCD Miscellaneous parts Kit FRU P/N74H0619 contains:
LCD Slide Knob,
LCD Foam Support,
Right Hinge,
Left Hinge,
Cable Clamp,
Back Gasket,
Top Gasket,
Copper TFT Tape,
Rubber Lid,
Front Logo,
Rear Logo
|
LCD Cover Description |
FRU P/N |
Subs to |
|
11.3 DSTN Top Cover Kit |
P/N 74H0583 |
P/N 05K4739 |
|
11.3 TFT Top Cover Kit |
P/N 82H8165 |
P/N 05K4740 |
|
LCD Miscellaneous parts |
P/N 74H0619 |
NOTES:
This ECA's expiration date is 10/31/1999.
This service action is non-billable as long as the ECA is active.
Order all FRU parts locally, and record Time and Material to service code 33, ECA 005, and OTHER OFFICE 990.
EMEA CLAIM INFORMATION:
IBM PSS CE's should record all time and parts to Service Code 33, (2625) ECA099, Other Office 990.
EMEA BUSINESS PARTNERS:
Refer to Warranty Claim System;
Use Emergency Claim 5 (ECA) and enter into CPPS:
ECA Number 099
Machine Type 2625
|
