TP 380,385 - LCD miscellaneous parts removal diagrams
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1150 LCD Misc. Parts
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
LCD Front Cover (1120)
LCD Panel (1130)
LCD Inverter Card (1140)

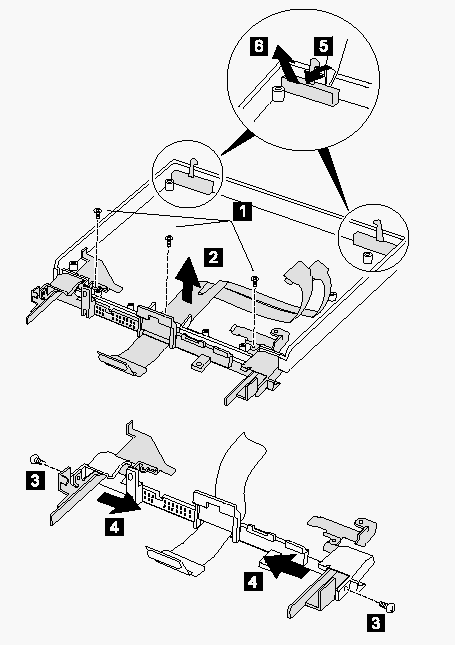

DSTN LCD Hinges/Latches
1 2 3 4: Hinges
5 6 : Latches
|
Step |
Location (Quantity) |
Length |
|
1 |
LCD hinge (3) |
M2.5x6mm |
|
3 |
LCD hinge (2) |
M2.5x6mm |
|
Note: When replacing, make sure you use the correct screw. |

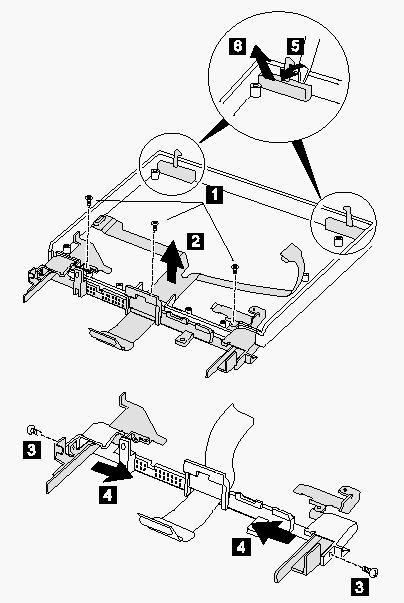

TFT LCD
This artwork shows the TFT type 1 LCD. For the type 2, do the same procedure.
1 2 3 4 : Hinges
5 6 : Latches
|
Step |
Location (Quantity) |
Length |
|
1 |
LCD hinge (3) |
M 2.5 x 6mm |
|
3 |
LCD hinge (2) |
M 2.5 x 6mm |
|
Note: When replacing, make sure you use the correct screw. |
When replacing:
Replace the LCD miscellaneous parts as follows:

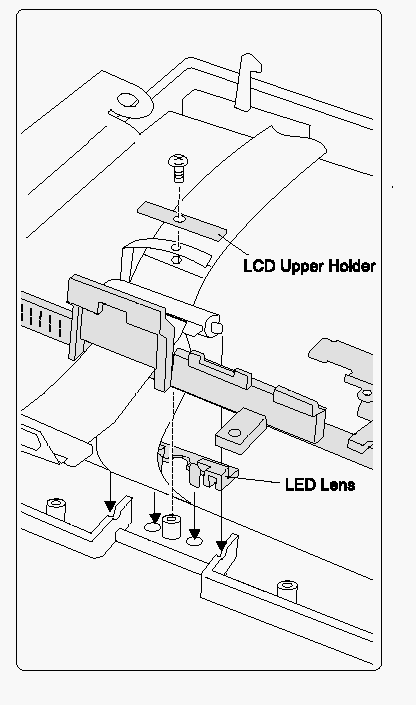

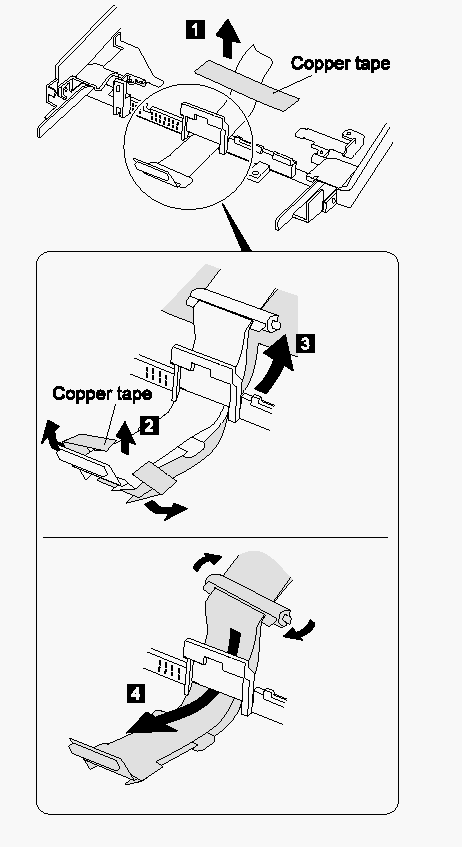

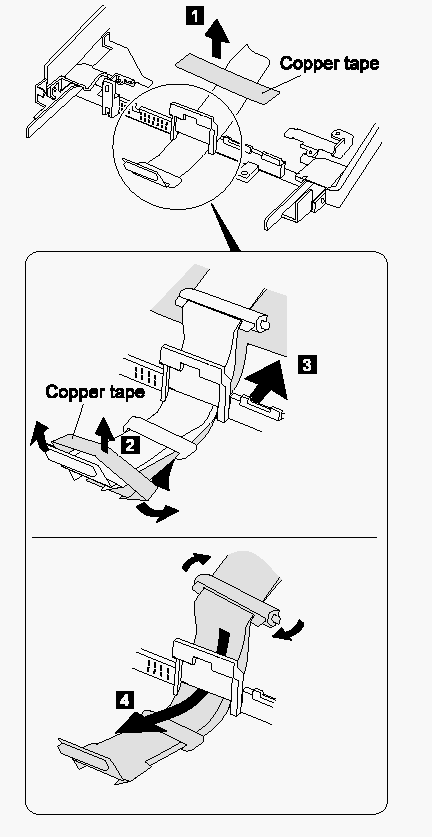

LCD Cable
DSTN LCD
TFT LCD
|
