Parts Information

Document ID: DDSE-469M4R

Netfinity 7000 - System Parts Listing

Applicable to: World-Wide

Parts Listing (Models RH0, RM0, TH0, TM0 - Type 8651)

Note
For Models RH0 and RM0 rack mounting FRUs, see "Rack Mounting FRUs
(Models RH0, RM0 - Type 8651)"

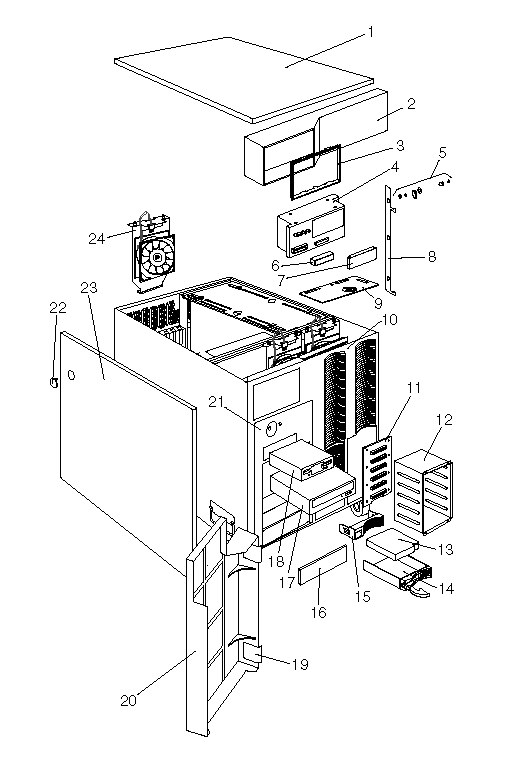

Front View

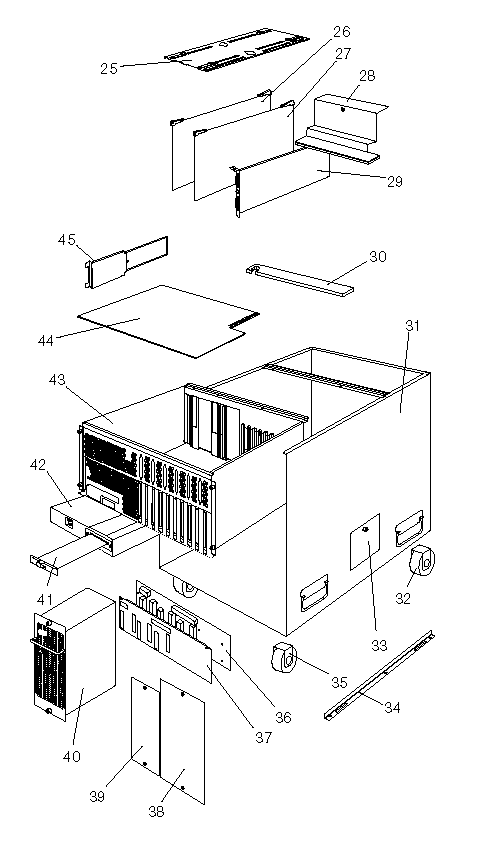

Rear View

Index

System (Models RH0, RM0, TH0, TM0 - Type 8651)

FRU No.

1

Top Cover (Models TH0, TM0, RH0, RM0)

12J3063

2

Front Bezel Cap (Models TH0, TM0)

12J7041

3

Status Cover Lens (Models TH0, TM0, RH0, RM0)

12J7031

4

LED Card Assembly with Mounting Bracket (Models TH0, TM0, RH0, RM0)

93H6432

5

Keylock with Keys and Pawl (Models TH0, TM0)

01K6641

6

LED Light Guide with Icons (Models TH0, TM0, RH0, RM0)

12J7033

7

Vacuum Florescent Display Panel (Models TH0, TM0, RH0, RM0)

12J4633

8

Lock Linkage (Models TH0, TM0)

01K6636

9

Control Panel Card (Models TH0, TM0, RH0, RM0)

93H6052

10

Front Bezel without Door Assembly (Models TH0, TM0, RH0, RM0)

12J3064

11

DASD Backplane Board (Models TH0, TM0, RH0, RM0)

76H6880

12

DASD 6-Drive Cage Assembly (Models TH0, TM0, RH0, RM0)

03K8788

13

4 GB Hard File (Models TH0, TM0)

76H5817

13

9 GB Hard File (Models TH0, TM0)

76H5818

14

Hard File Tray (Slim) (Models TH0, TM0, RH0, RM0)

12J3276

14

Hard File Tray (Half High) (Models TH0, TM0, RH0, RM0)

12J3758

15

Hard File Drive Bezels (Models TH0, TM0, RH0, RM0)

12J3072

16

5.25-Inch Blank Bezels (Models TH0, TM0, RH0, RM0)

12J3073

17

8X-16X CD-ROM Drive (IDE) (Models TH0, TM0, RH0, RM0)

76H6105

17

8X-16X CD-ROM Drive (IDE) (Models TH0, TM0, RH0, RM0)

76H6107

18

1.44MB Diskette Drive (Models TH0, TM0, RH0, RM0)

76H4091

19

Door Hinge (Models TH0, TM0)

01K6637

20

Door Assembly (Models TH0, TM0)

01K6639

21

Media/Switch Panel Trim (Models TH0, TM0, RH0, RM0)

12J7036

23

Side Cover (Models TH0, TM0)

12J3281

24

Fan Assembly 120mm with Connector and Bracket
(Models TH0, TM0, RH0, RM0)

12J3091

25

Memory and Processor Board Retaining Bracket
(Models TH0, TM0, RH0, RM0)

12J3075

26

Memory DIMM Card (Models TH0, TM0, RH0, RM0)

93H4961

27

512 KB Processor Card without Processor (Models TM0, RM0)

12J3480

27

1 MB Processor Card without Processor (Models TH0, RH0)

12J3352

28

I/O Card Retaining Bracket (Models TH0, TM0, RH0, RM0)

12J3076

29

Advanced Systems Management Adapter (Models TH0, TM0, RH0, RM0)

12J4743

30

Air Deflector Shield (Models TH0, TM0, RH0, RM0)

12J7030

31

Base Frame Assembly (Models TH0, TM0, RH0, RM0)

12J3062

32

Foot Fixed Caster (Models TH0, TM0)

12J3279

33

Side Access Cover (Models TH0, TM0, RH0, RM0)

12J7042

34

Foot Swivel Caster (Models TH0, TM0)

12J3283

35

Side Cover Bracket (Models TH0, TM0)

12J7040

36

Power Backplane Card (Models TH0, TM0, RH0, RM0)

93H6040

37

Power Backplane Cover (Models TH0, TM0, RH0, RM0)

12J3266

38

Blank Filler Panel (Models TH0, TM0, RH0, RM0)

12J3069

39

Power Supply Filler Plate (Models TH0, TM0, RH0, RM0)

12J3068

40

400 Watt Power Supply Assembly with Bracket (Models TH0, TM0, RH0, RM0)

76H6589

41

5-Volt Regulator Card with Bracket (Models TH0, TM0, RH0, RM0)

93H6046

42

AC Power Assembly (Models TH0, TM0, RH0, RM0)

12J3264

43

Central Electronics Complex (CEC) (Models TH0, TM0, RH0, RM0)

12J3070

44

Planar without Memory and Processor Card #12J3338
(Models TH0, TM0, RH0, RM0)
Planar with 1 MB VRAM (Models TH0, TM0, RH0, RM0)

01K7075

01K7267

45

22

Central Electronics Complex (CEC) Cable Retaining Bracket
(Models TH0, TM0, RH0, RM0)
64 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0)
128 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0)
256 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0)
512 KB Heat Sink with Tape and Clip (Models TH0, TM0, RH0, RM0)
1 MB Heat Sink with Tape and Clip (Models TH0, TM0, RH0, RM0)
200MHz Processor with 512 KB Cache and Heat Sink (Models TM0, RM0)
200MHz Processor with 1 MB Cache and Heat Sink (Models TH0, RH0)
Advanced Systems Management Adapter Battery (Models TH0, TM0, RH0, RM0)
See "Advanced Systems Management Adapter Battery"
CD-ROM 16/8 Bit SCSI Converter (Models TH0, TM0, RH0, RM0)
Control Card Bracket (Models TH0, TM0, RH0, RM0)
Decorative Rear Cover (Models TH0, TM0)
Diskette Tray (Models TH0, TM0, RH0, RM0)
EISA Card Guide (Models TH0, TM0, RH0, RM0)
Half High Drive Extender (Models TH0, TM0, RH0, RM0)
Hard File Fan (10K RPM Drives) (Models TH0, TM0, RH0, RM0)
Hard File Repeater Card (Models TH0, TM0, RH0, RM0)
I/O Shield (Models TH0, TM0, RH0, RM0)
Keyboard with Cable (Models TH0, TM0) See "Keyboards (101/102 Key)"
Line Cord Strain Relief Assembly (Models TH0, TM0, RH0, RM0)
Media Mounting Bracket (Models TH0, TM0, RH0, RM0)
Miscellaneous Parts Kit (Models TH0, TM0, RH0, RM0)
32X5/16-Inch Screws (6 each)
PL M3X8 Hex Screws (3 each)
FEM-Nut 4-40 Screws (2 each)
Floppy M3 Screws (2 each)
Hard File 6-32 Screws (2 each)
EMC Ground Contacts (4 each)
I/O Blank (1 each)
Planar Edge Support (1 each)
Power Switch Bracket (1 each)
EMC Contact (1 each)
I/O Brackets (2 each)
Side Cover Lock Hole Plug (1 each)

Mouse (Models TH0, TM0)
Power Cord (Models TH0, TM0, RH0, RM0) See "Power Cords"
PCI Card Guide (Models TH0, TM0, RH0, RM0)
SCSI Adapter (Models TH0, TM0, RH0, RM0)

12J3285

12J3474
12J3476
12J3478
75H9661
01K6950
76H4889
12J3846
33F8354

92F0324
12J7032
12J3282
12J3065
12J3298
12J3286
01K6947
12J3690
12J5678

01K6934
12J5681
12J3079

76H0889

12J3077
76H3587

Search Keywords

Document Category

Service Parts

Date Created

23-03-99

Last Updated

23-03-99

Revision Date

23-03-2000

Brand

IBM PC Server

Product Family

Netfinity 7000

Machine Type

8651

Model

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index	System (Models RH0, RM0, TH0, TM0 - Type 8651)	FRU No.
1	Top Cover (Models TH0, TM0, RH0, RM0)	12J3063
2	Front Bezel Cap (Models TH0, TM0)	12J7041
3	Status Cover Lens (Models TH0, TM0, RH0, RM0)	12J7031
4	LED Card Assembly with Mounting Bracket (Models TH0, TM0, RH0, RM0)	93H6432
5	Keylock with Keys and Pawl (Models TH0, TM0)	01K6641
6	LED Light Guide with Icons (Models TH0, TM0, RH0, RM0)	12J7033
7	Vacuum Florescent Display Panel (Models TH0, TM0, RH0, RM0)	12J4633
8	Lock Linkage (Models TH0, TM0)	01K6636
9	Control Panel Card (Models TH0, TM0, RH0, RM0)	93H6052
10	Front Bezel without Door Assembly (Models TH0, TM0, RH0, RM0)	12J3064
11	DASD Backplane Board (Models TH0, TM0, RH0, RM0)	76H6880
12	DASD 6-Drive Cage Assembly (Models TH0, TM0, RH0, RM0)	03K8788
13	4 GB Hard File (Models TH0, TM0)	76H5817
13	9 GB Hard File (Models TH0, TM0)	76H5818
14	Hard File Tray (Slim) (Models TH0, TM0, RH0, RM0)	12J3276
14	Hard File Tray (Half High) (Models TH0, TM0, RH0, RM0)	12J3758
15	Hard File Drive Bezels (Models TH0, TM0, RH0, RM0)	12J3072
16	5.25-Inch Blank Bezels (Models TH0, TM0, RH0, RM0)	12J3073
17	8X-16X CD-ROM Drive (IDE) (Models TH0, TM0, RH0, RM0)	76H6105
17	8X-16X CD-ROM Drive (IDE) (Models TH0, TM0, RH0, RM0)	76H6107
18	1.44MB Diskette Drive (Models TH0, TM0, RH0, RM0)	76H4091
19	Door Hinge (Models TH0, TM0)	01K6637
20	Door Assembly (Models TH0, TM0)	01K6639
21	Media/Switch Panel Trim (Models TH0, TM0, RH0, RM0)	12J7036
23	Side Cover (Models TH0, TM0)	12J3281
24	Fan Assembly 120mm with Connector and Bracket (Models TH0, TM0, RH0, RM0)	12J3091
25	Memory and Processor Board Retaining Bracket (Models TH0, TM0, RH0, RM0)	12J3075
26	Memory DIMM Card (Models TH0, TM0, RH0, RM0)	93H4961
27	512 KB Processor Card without Processor (Models TM0, RM0)	12J3480
27	1 MB Processor Card without Processor (Models TH0, RH0)	12J3352
28	I/O Card Retaining Bracket (Models TH0, TM0, RH0, RM0)	12J3076
29	Advanced Systems Management Adapter (Models TH0, TM0, RH0, RM0)	12J4743
30	Air Deflector Shield (Models TH0, TM0, RH0, RM0)	12J7030
31	Base Frame Assembly (Models TH0, TM0, RH0, RM0)	12J3062
32	Foot Fixed Caster (Models TH0, TM0)	12J3279
33	Side Access Cover (Models TH0, TM0, RH0, RM0)	12J7042
34	Foot Swivel Caster (Models TH0, TM0)	12J3283
35	Side Cover Bracket (Models TH0, TM0)	12J7040
36	Power Backplane Card (Models TH0, TM0, RH0, RM0)	93H6040
37	Power Backplane Cover (Models TH0, TM0, RH0, RM0)	12J3266
38	Blank Filler Panel (Models TH0, TM0, RH0, RM0)	12J3069
39	Power Supply Filler Plate (Models TH0, TM0, RH0, RM0)	12J3068
40	400 Watt Power Supply Assembly with Bracket (Models TH0, TM0, RH0, RM0)	76H6589
41	5-Volt Regulator Card with Bracket (Models TH0, TM0, RH0, RM0)	93H6046
42	AC Power Assembly (Models TH0, TM0, RH0, RM0)	12J3264
43	Central Electronics Complex (CEC) (Models TH0, TM0, RH0, RM0)	12J3070
44	Planar without Memory and Processor Card #12J3338 (Models TH0, TM0, RH0, RM0) Planar with 1 MB VRAM (Models TH0, TM0, RH0, RM0)	01K7075 01K7267
45 22	Central Electronics Complex (CEC) Cable Retaining Bracket (Models TH0, TM0, RH0, RM0) 64 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0) 128 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0) 256 MB ECC 3.3v Buffer DIMM (Models TH0, TM0, RH0, RM0) 512 KB Heat Sink with Tape and Clip (Models TH0, TM0, RH0, RM0) 1 MB Heat Sink with Tape and Clip (Models TH0, TM0, RH0, RM0) 200MHz Processor with 512 KB Cache and Heat Sink (Models TM0, RM0) 200MHz Processor with 1 MB Cache and Heat Sink (Models TH0, RH0) Advanced Systems Management Adapter Battery (Models TH0, TM0, RH0, RM0) See "Advanced Systems Management Adapter Battery" CD-ROM 16/8 Bit SCSI Converter (Models TH0, TM0, RH0, RM0) Control Card Bracket (Models TH0, TM0, RH0, RM0) Decorative Rear Cover (Models TH0, TM0) Diskette Tray (Models TH0, TM0, RH0, RM0) EISA Card Guide (Models TH0, TM0, RH0, RM0) Half High Drive Extender (Models TH0, TM0, RH0, RM0) Hard File Fan (10K RPM Drives) (Models TH0, TM0, RH0, RM0) Hard File Repeater Card (Models TH0, TM0, RH0, RM0) I/O Shield (Models TH0, TM0, RH0, RM0) Keyboard with Cable (Models TH0, TM0) See "Keyboards (101/102 Key)" Line Cord Strain Relief Assembly (Models TH0, TM0, RH0, RM0) Media Mounting Bracket (Models TH0, TM0, RH0, RM0) Miscellaneous Parts Kit (Models TH0, TM0, RH0, RM0) 32X5/16-Inch Screws (6 each) PL M3X8 Hex Screws (3 each) FEM-Nut 4-40 Screws (2 each) Floppy M3 Screws (2 each) Hard File 6-32 Screws (2 each) EMC Ground Contacts (4 each) I/O Blank (1 each) Planar Edge Support (1 each) Power Switch Bracket (1 each) EMC Contact (1 each) I/O Brackets (2 each) Side Cover Lock Hole Plug (1 each) Mouse (Models TH0, TM0) Power Cord (Models TH0, TM0, RH0, RM0) See "Power Cords" PCI Card Guide (Models TH0, TM0, RH0, RM0) SCSI Adapter (Models TH0, TM0, RH0, RM0)	12J3285 12J3474 12J3476 12J3478 75H9661 01K6950 76H4889 12J3846 33F8354 92F0324 12J7032 12J3282 12J3065 12J3298 12J3286 01K6947 12J3690 12J5678 01K6934 12J5681 12J3079 76H0889 12J3077 76H3587
