Service Hints & Tips |
Document ID: LWIK-42EMAD |

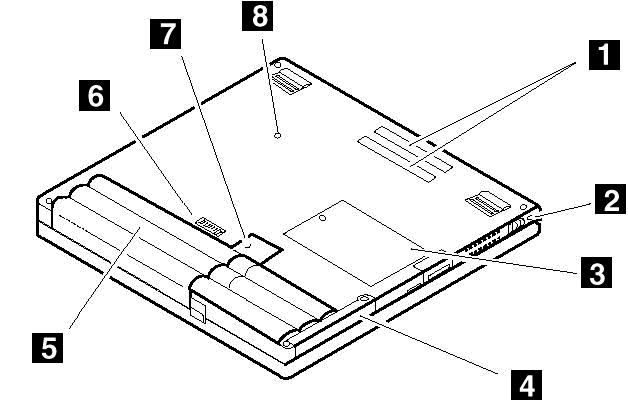

TP 560Z - Bottom view
Applicable to: World-Wide
1 System-Expansion Connectors
2 Security Keyhole
3 Memory Slot
4 Hard Disk Drive Slot
5 Battery Pack
6 Battery Pack Latch
7 Backup Battery Slot
8 Power Shutdown Switch
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
20-11-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560Z | |
|
Machine Type |
2640, 2641 | |
|
Model |
Various | |
|
TypeModel |
| |
|
