Netfinity 3500 - Microprocessor Speed Switches

Applicable to: World-Wide

Microprocessor Speed Switches

Notes When you replace a microprocessor with one that has a different speed, you must change the switch settings on the system board. When you add a second microprocessor, it must operate at the same speed as the primary microprocessor.

1. Locate the configuration switches on the system board. For more information, refer to the label inside the server, or see System Board.

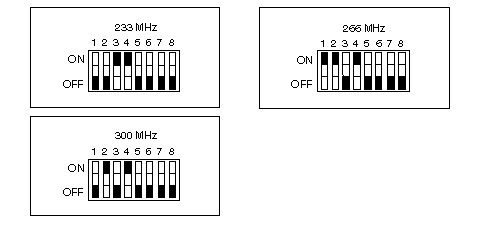

2. To set the appropriate microprocessor speed, set switches 1 to 4 as shown in the following illustration. It might be helpful to use the end of a small screwdriver to set the switch.

Note: Switches 5 to 8 are not used for microprocessor speed settings.

Table 10. Microprocessor Switch Settings

3. After changing configuration switch settings, you must reconfigure the server. After reassembling the server (see "Completing the Installation" on page 56), use the Configuration/Setup Utility program to reconfigure the server. For more information, see Configuration/Setup Utility Program Menus.
