Service Hints & Tips |
Document ID: GSMH-3GGDX8 |
Aptiva - 2161 Removals and replacements - Drives
Applicable to: World-Wide
2020 - 3.5-In. Bays
Disconnect any cables on the drive.
Remove the screws.
Pull out the drive.

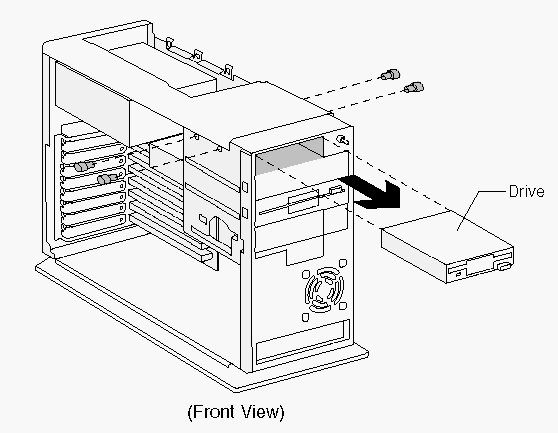

Figure 4-3. Bay 1 (3.5-In.)

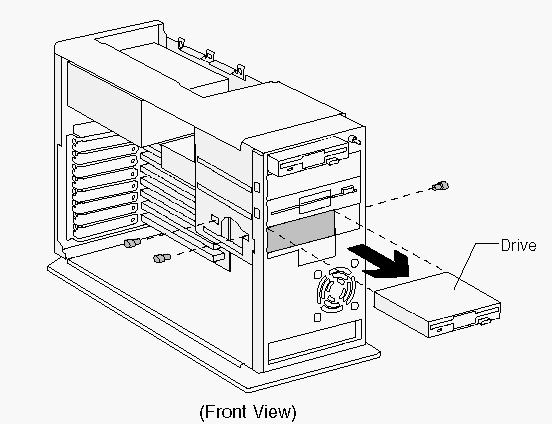

Figure 4-4. Bays 4 (3.5-In.)
2020 - 5.25-In. Bays
Disconnect any cables on the drive.
Remove the screws.
Pull out the drive.
When removing a drive, install the new FRU in the same bay.

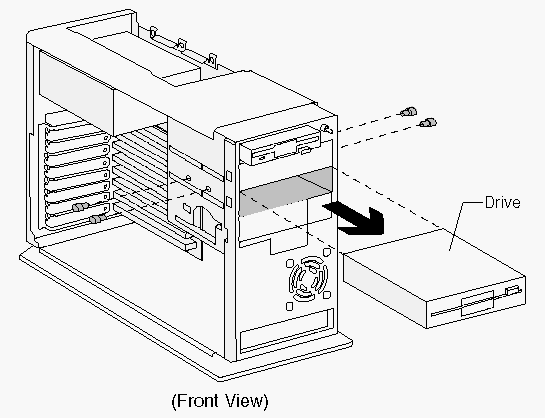

Figure 4-5 Bays 2 and 3 (5.25-In.)
|
