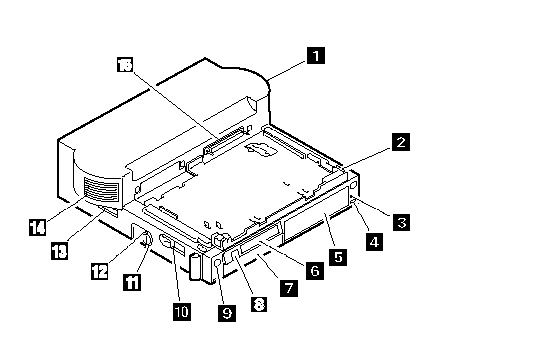

TP Dock II - Front View
Applicable to: World-Wide
1 |
Main Cabinet Group |
2 |
Tray Unit |
3 |
Headphone Jack |
4 |
Volume Control |
5 |
Half-height Drive |
6 |
Status Indicator |
7 |
1-inch-high Drive |
8 |
Power Switch |
9 |
Eject Switch |
10 |
Eject Lever |
11 |
Security Lock |
12 |
Unlatch Hole |
13 |
Reserved (Always keep this lever to the rear) |
14 |
Left Speaker |
15 |
Notebook Connector (male-type, 240-pin) |
