TP 755CE/CSE/CV/CX - Rear View Locations
Applicable to: World-Wide

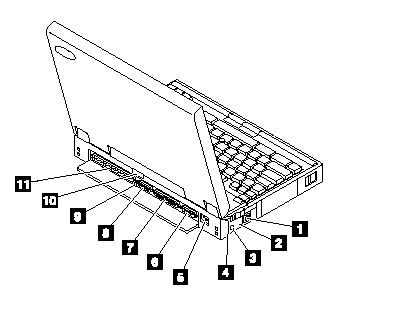

Rear View:
|
1 |
Telephony Jack |
|
2 |
Microphone/Line-In Jack |
|
3 |
Headphone Jack |
|
4 |
Power Switch |
|
5 |
Power Jack |
|
6 |
Serial Connector |
|
7 |
Parallel Connector |
|
8 |
External-Display Connector |
|
9 |
Reset Switch |
|
10 |
Rear Infrared Port |
|
11 |
System Expansion Connector |
A multimedia portable expansion unit, port replicator, or port replicator with PCMCIA can be connected to this interface to support the following features.
- 16-bit AT-bus interface
- Serial port
- Parallel port
- Keyboard and mouse
- HDD connection
- LED control signals
- Visual signals
- Audio signals
- FDD signals
- PCMCIA signals
- Power controls
- Power line
|
