Netfinity 5500 M20 - Diagnostics panel LEDs
Applicable to: World-Wide
Source: Hardware Maintenance Manual
Diagnostics panel LEDs

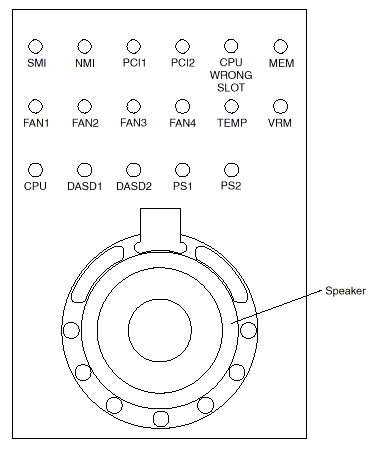

The following illustration shows the LEDs on the diagnostics panel inside the server. See "Symptom-to-FRU index" and "Light path diagnostics" for information on identifying problems using these LEDs.
To replace the diagnostics panel LEDs, you must replace the interior LED and speaker assembly.
|
