Service Hints & Tips |
Document ID: GSMH-3GKBPM |
Aptiva - 2161 Zip drive jumper settings
Applicable to: World-Wide
Zip Drive
The factory installed Zip 100 ATA/IDE drive is connected to the system board Primary drive connector.
The Zip drive is a direct access storage device that features removable media having a formatted capacity of 100 MB.
The Zip Drive jumper is set as the slave drive, as shown in Figure 5-16.

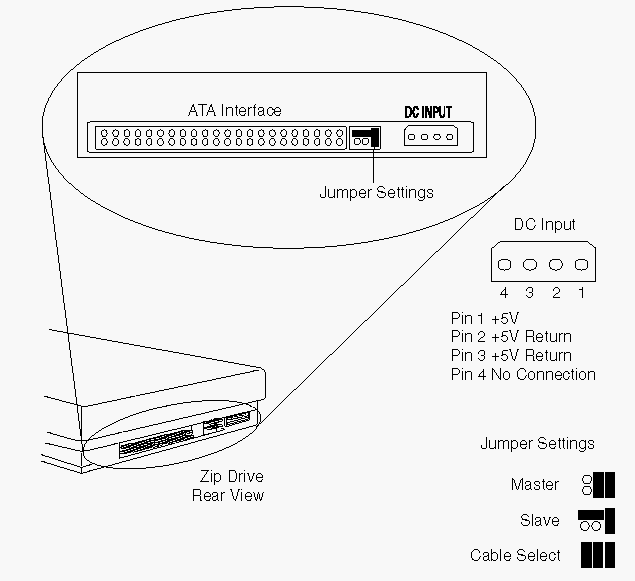

Figure 5-16. Zip Drive Jumper Settings
|
