Service Hints & Tips |
Document ID: GSMH-3FHFB9 |
IBM PC730/PC750 - System board
Applicable to: World-Wide
PC 730/750 Series (Type 6875, 6876, 6885, 6886) - Pentium 75/90/100/120/133 MHz System Board:

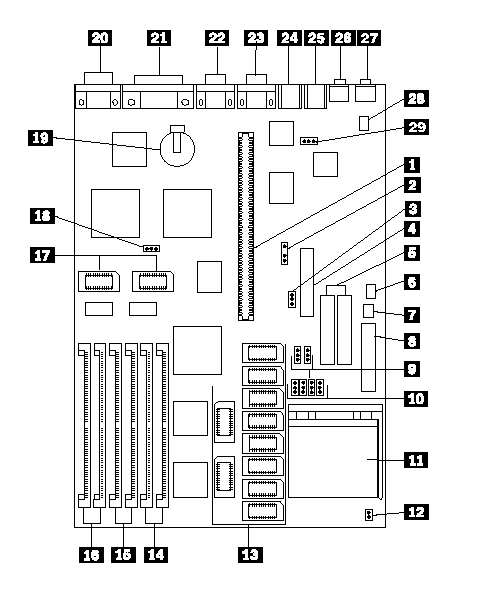

PC 730/750 Series (Type 6875, 6876, 6885, 6886) - Pentium 75/90/100/120/133 MHz System Board Locations:
|
1 |
Riser connector |
|
2 - J15 |
Modem Ring Detect connector |
|
3 - J29 |
Diskette drive write protect jumper |
|
4 |
Diskette drive connector |
|
5 |
Hard disk drive connectors |
|
6 - J38 |
On/Off Switch power supply connector |
|
7 - J37 |
On/Off Switch connector |
|
8 |
Power supply connectors |
|
9 |
Bus/CPU Speed (MHz) |
|
10 |
L2 Cache size jumpers |
|
11 |
Processor connector |
|
12 - J19 |
Bus/Core Ratio |
|
13 |
Cache connectors |
|
14 |
Memory connectors (Bank 2) |
|
15 |
Memory connectors (Bank 1) |
|
16 |
Memory connectors (Bank 3) |
|
17 |
Video memory connectors |
|
18 - J40 |
Power-on password jumper |
|
19 |
Battery |
|
20 |
Display connector |
|
21 |
Parallel connector |
|
22 |
Serial connector |
|
23 |
Serial connector |
|
24 |
Mouse connector |
|
25 |
Keyboard connector |
|
26 |
Audio jack |
|
27 |
Audio jack |
|
28 |
IDE CD-ROM audio connector |
|
29 - J28 |
Mouse jumper |
See ¿PC 730/750 Series (Type 6875, 6876, 6885, 6886) - Pentium 75/90/100/120/133 MHz Jumper Settings— for jumper settings.
PC 730/750 Series (Type 6875, 6876, 6885, 6886) - Pentium 75/90/100/120/133 MHz Jumper Settings:
The following table contains the jumper setting information. (D) indicates the default setting.
|
Jumper |
Setting |
Description |
|
J19 |
open (D) |
2/3 Bus/Core Ratio |
|
J28 |
1-2 (D) |
Mouse enabled |
|
J29 |
2-3 (D) |
Enable writing to a diskette Disable writing to a diskette. |
|
J40 |
1-2 (D) |
Password enabled. |
Bus/CPU Speed MHz Setting:
The following table contains the Bus/CPU Speed settings.
|
Jumper |
50/75 |
60/90 |
66/100 |
|
J26 |
2-3 |
2-3 |
1-2 |
|
J27 |
2-3 |
1-2 |
1-2 |
Cache Jumper Settings:
The following table contains the cache jumper settings.
|
Cache |
J21 |
J22 |
J23 |
J24 |
|
256 KB |
1-2 |
1-2 |
1-2 |
1-2 |
|
