Service Hints & Tips |
Document ID: BMOE-3YLNBS |
TP 770 - Bottom View
Applicable to: World-Wide

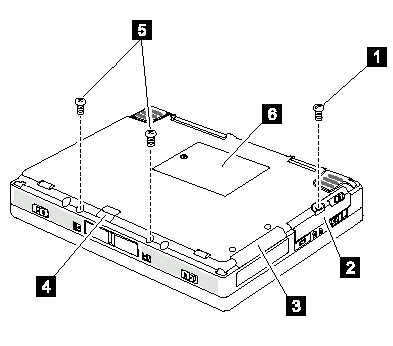

Bottom View:
|
1 |
Coin screw or security screw |
|
2 |
Hard disk drive |
|
3 |
DVD adapter card slot |
|
4 |
Front Infrared port |
|
5 |
Security screws |
|
6 |
DIMM slot |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
23-09-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 770, ThinkPad 770E/ED, ThinkPad 770X | |
|
Machine Type |
9548, 9549, 9544 | |
|
Model |
Various | |
|
