Service Hints & Tips

Document ID: DETR-446MRP

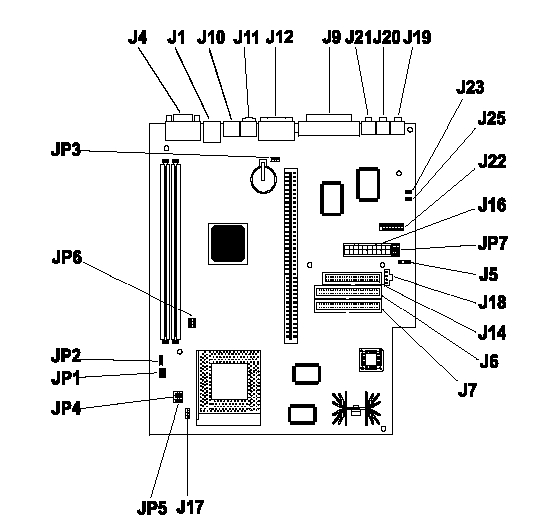

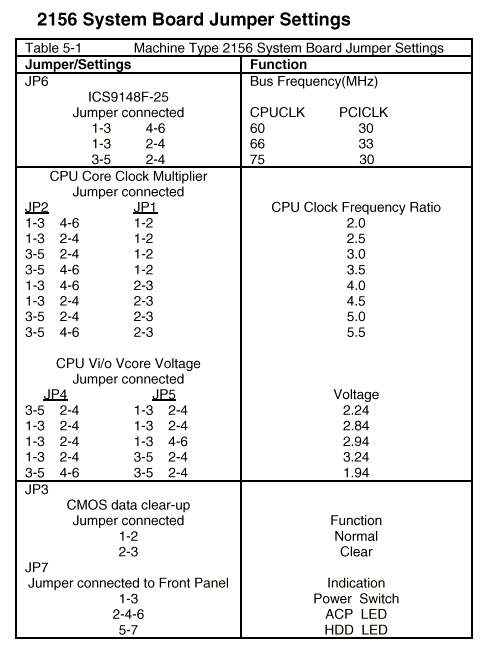

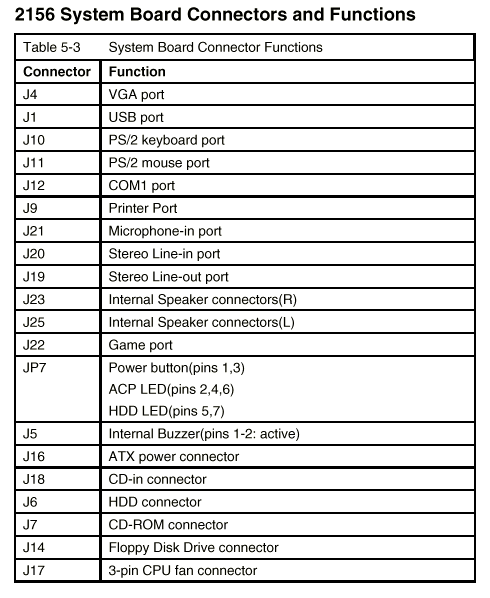

Aptiva - 2156-1xx system board layout, locations and jumpers

Applicable to: China, Hong Kong, Japan, Taiwan, Canada


Search Keywords

Hint Category

System Boards, Jumper/Switch Settings, Processors, Hardware Installation/Configuration

Date Created

15-01-99

Last Updated

03-02-99

Revision Date

03-02-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2156

Model

133; 140; 143; 144; 145; 146

TypeModel

Retain Tip (if applicable)
