Service Hints & Tips

Document ID: BMOE-425QKN

TP 1400 - Speaker Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard
• Hard Disk Drive and HDD Heatsink
• CPU Heatsink
• LCD Assembly
• Upper Cover (Keyboard Bezel)

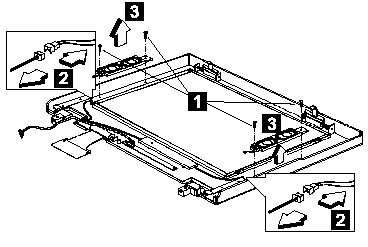

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M2 x 4L (4)	Pan head, silver	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.

	Search Keywords
	Document Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	12-11-98
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
