TP 560X - 1010 Backup Battery
Applicable to: World-Wide
1010 Backup Battery:
|
Safety Notice 4: |
The lithium battery can cause a fire, explosion, or severe burn. |
|
Do not recharge it, remove its polarized connector, disassemble it, heat it above 100C (212F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery. |

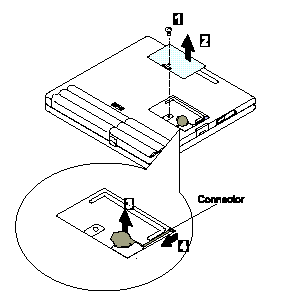

Turn the computer upside down.
|
Step |
Length (Quantity) |
Torque |
|
1 |
7 mm, nylon coating (1) |
4.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
04-11-97 | |
|
Last Updated |
07-04-98 | |
|
Revision Date |
17-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560X | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
