TP 380,385 - Speaker/microphone removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1050 Speaker / Microphone
Battery Pack (1010)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)

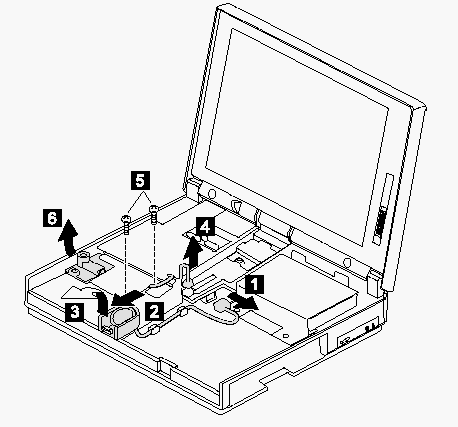

1 2 3 : Speaker
4 5 6 : Microphone
Note: To remove the microphone easily, pull up the upper shield slightly.
|
Step |
Location (Quantity) |
Length |
|
5 |
System board assembly (2) |
M 2.6 x 4mm |
|
Note: When replacing, make sure you use the correct screw. |
|
