Service Hints & Tips |
Document ID: BMOE-425GGD |
TP 1400 - Modem Board Cover and Modem Board Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
|

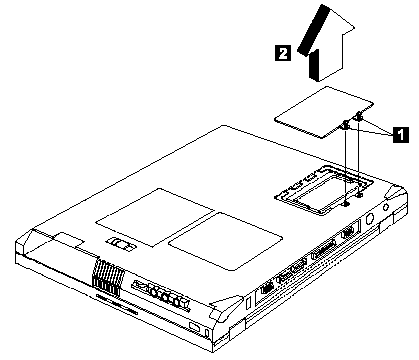

Step |
Size |
Head & |
Torque |
Memo |
|
1 |
M2 x 5L (2) |
Bind |
1.6kgf-cm |
Note: The screws do not separate from the modem board cover.

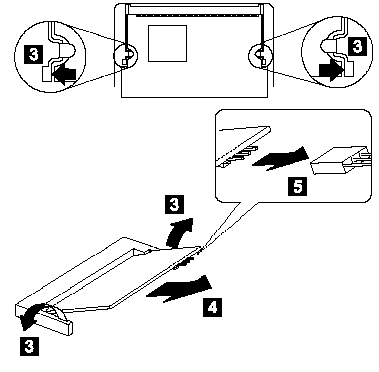

To remove the modem board:
Press the release latches on both sides of the modem board (3), then pull out the modem board (4). Then disconnect the modem cable (5).
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, Hardware Maintenance Information | |
|
Date Created |
11-11-98 | |
|
Last Updated |
11-11-98 | |
|
Revision Date |
11-11-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad i Series 1400 | |
|
Machine Type |
2611 | |
|
Model |
Various | |
|
