Netfinity 5000 - DASD Fan Assembly Removal

Applicable to: World-Wide

DASD Fan Assembly Removal

Before you begin - Read Safety Information. - Turn off the server, if it is on.

Attention When removing or replacing the fan, be sure to route the cables correctly to avoid damage to the SCSI cables and connectors.

To remove the DASD fan assembly, do the following:
1. Remove the side cover, see Option Installation.

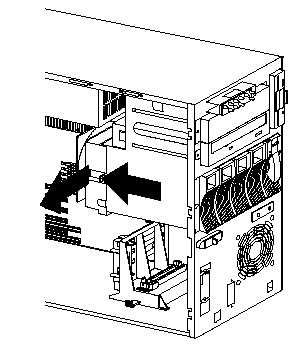

2. Release the fan assembly latch and slide the fan assembly out of the server.

	Search Keywords
	Document Category	Hard Drives
	Date Created	11-12-98
	Last Updated	06-01-99
	Revision Date	06-01-2000
	Brand	IBM PC Server
	Product Family	Netfinity 5000
	Machine Type	8659
	Model	ALL
